Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Audio output channels |
7.1 channels |
| Intel Extreme Memory Profile (XMP) |
Y |
| Component for |
PC |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
2133 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Internal I/O
| USB 2.0 connectors |
1 |
| Number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| EPS power connector (8-pin) |
Y |
| Supported storage drive interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| Number of M.2 (M) slots |
1 |
Networking
| Wake-on-LAN ready |
Y |
| LAN controller |
Intel I219-V |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Wi-Fi |
N |
Packaging content
| Cables included |
SATA |
| Drivers included |
Y |
| Bundled software |
ASUS Utilities\nASUS EZ Update |
| Quick installation guide |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Digital audio optical out |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
1 |
Processor
| Processor socket |
LGA 1151 (Socket H4) |
| Intel Core i3/i5/i7 series |
i3-6xxx, i5-6xxx, i7-6xxx |
| Compatible processor series |
Celeron, Core i3, Core i5, Core i7, Pentium |
Weight & dimensions
| Depth |
170 mm |
| Width |
170 mm |
Additionally
| Chipset |
Intel B150 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

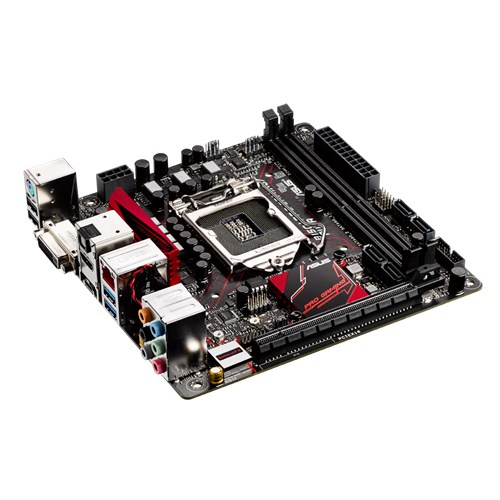

Socket LGA1151, Intel B150, 2x DDR4 2133MHz, 1x PCIe 3.0 x16, 4x SATAIII, Gigabit Ethernet, 4x USB 2.0, 5x USB 3.0, 1x PS/2, 1x DVI-D, 1x HDMI, 6x Audio Jacks, Mini-ITX
BRIGHTEN YOUR BUILD WITH CUSTOMIZABLE RGB LED ILLUMINATION
Gaming is about your style, your personality — and your passion. B150I Pro Gaming/WiFi/Aura is the gaming motherboard that lets you inject passion to project your style and personality in full color! Aura, our all-new LED-illumination technology, lighting up an endless spectrum of color combinations coupled with a selection of fascinating and fun effects.
Aura
Customize your own favorite LED effect to cast a stunning multi-color glow across your build.
FLAWLESS AUDIO THAT MAKES YOU PART OF THE GAME!
Be the best on the battlefield with B150I Pro Gaming/WiFi/Aura's truly immersive SupremeFX audio and experience sound so alive with realism that it hands you the vital competitive edge needed to win. With near-lossless delivery and exclusive Sonic Radar II technology to pinpoint battlefield enemies before they spot you, SupremeFX sounds stupendous — and puts both your ears and frags in front of everyone else!
SupremeFX Shielded audio, superior sound
ASUS-exclusive SupremeFX technology delivers high-fidelity, near-lossless audio no matter how frantic your game becomes. The purity and stability of the remarkable 112dB signal-to-noise ratio (SNR) is assured, with a shielded design, electromagnetic-interference (EMI) cover and voltage-protected 5V power supply. Supreme FX's superior components, including the trusted Realtek ALC1150 codec, maximize acoustic performance and eliminate interference – so you hear only the very best from your gaming headset or speakers!
Sonic Radar II
Scan and detect to dominate!
Sonic Radar II displays a stealthy overlay that shows what your opponents and teammates are up to on the battlefield, all managed via a simple control panel and customizable game list. See the direction and origin of key in-game sounds, and practice your enemy-pinpointing skill, plus Audio Enhancement technology clarifies every last sound — so you hear the distant sound of enemy footsteps and become the hunter, not the hunted!
TOP-SPEED PROTECTED NETWORKING
Only the quickest shot survive, so B150I Pro Gaming/WiFi/Aura banishes lag — letting you annihilate your foes as fast as your trigger finger! Our engineers pack in only the best networking technology, including tournament-level Intel® Gigabit Ethernet and ASUS-exclusive LANGuard and GameFirst technologies to keep your connection fast, so always fire first and watch your enemies fall.
Intel Gigabit Ethernet
More throughput, less CPU usage and great gaming experiences
Featuring the very latest Intel Ethernet (I219-V) for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay.
LANGuard
Pumped-up throughput. Best surge protection
LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your B150I Pro Gaming/WiFi/Aura's connection and deliver pumped-up throughput, plus electrostatically-guarded and surge-protected components (ESD Guards) for 1.9X-greater tolerance to static electricity and 2.5X-greater protection (up to 15KV) against surges!
GameFirst
Team up to banish lag
GameFirst IV Beta optimizes network traffic for faster, lag-free online gaming — and now we've added Multi-Gate Teaming to team all your networks for maximum bandwidth and the smoothest-ever gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for the best performance.
Multi-Gate Teaming
Team all your network gateways for maximum bandwidth and assign connections to every application for the smoothest-ever gameplay.
PERFORMANCE LEVEL UP
Maxed-out performance means maximum gaming thrills, and with exclusive AI Suite 3's dashboard-style control panel you'll fine-tune almost every aspect of your B150I Pro Gaming/WiFi/Aura-based system. Get the best balance between performance, cooling, stability, efficiency and aesthetics — all via a simple and intuitive interface.
Award-winning BIOS design
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way. In EZ Mode you can get set up very quickly, applying the date and time, fan profiles and Intel Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up favorites and shortcuts, record and review recent changes with Last Modified or make notes in Quick Notes.
RAMCache
Speed your game loads
Uniquely-intelligent technology that effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache turns milliseconds into microseconds to boost game-load times to stratospheric levels!
GAMER'S GUARDIAN FOR REAL-WORLD PROTECTION
Protect your back in the game and let B150I Pro Gaming/WiFi/Aura protect all sides in the real world! Motherboard self-protection with loads of brilliant defenses, including our unique smart DIY features ensures long-term gaming is in your future.
ESD Guards
2X-greater ESD protection for extended component lifespan
Electrostatic discharge (ESD) could mean game over for your rig, so B150I Pro Gaming/WiFi/Aura is protected by ESD Guards to actively prevent ESD — ensuring longer component lifespan and providing system resilience that's two times greater than industry standards. Game on!
BUILT FOR GAMING
B150I Pro Gaming/WiFi/Aura is built for play, shaped by professional gamers and tested for gaming perfection — strong enough storm through the industry's most punishing labs workouts. We engineer and test for the finest quality, longevity, performance, stability and compatibility. Our world-class engineers are themselves avid gamers, and combine their own passion with the skills and demands of some of the planet's best players to create innovative gaming features everyone will crave. With B150I Pro Gaming/WiFi/Aura you do more than just play — you'll experience gaming on the edge of reality.
THE POWER OF INTEL!
Intel B150 Chipset
The Intel® B150 is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® B150 Express chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
