Performance
| Motherboard form factor |
Mini ITX |
| Intel Rapid Storage Technology |
Y |
| Motherboard chipset family |
Intel |
| Intel Extreme Memory Profile (XMP) |
Y |
| Processor with Intel Graphics Technology required |
Y |
| Audio system |
SupremeFX |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Internal I/O
| USB 2.0 connectors |
1 |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Number of M.2 (M) slots |
1 |
Graphics
| Maximum graphics adapter memory |
1024 MB |
| Graphics adapter family |
Intel |
Processor special features
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Conflict Free |
Y |
| Intel® Smart Response Technology |
N |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Virtualization Technology (Intel® VT) |
VT-d |
| Intel vPro Technology |
N |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
Technical details
| Intel Rapid Storage Technology enterprise |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Form factor |
Mini ITX |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
1 |
Processor
| Intel Core i3/i5/i7 series |
i3-6xxx, i5-6xxx, i7-6xxx |
Additionally
| Chipset |
Intel B150 |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

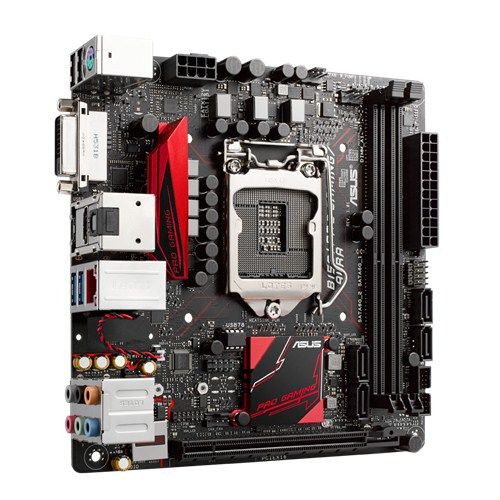

Intel B150, DDR4, 32GB, 2133MHz, Mini ITX
Compact gaming punch with awesome RGB lighting
- LGA1151 socket for 6th-genereation Intel® Core™ i7 / Core i5 / Core i3, Pentium® and Celeron processors
- Dual-channel DDR4 2133 support
- SupremeFX: Flawless audio that makes you part of the game
- Sonic Radar ll: Scan and detect your enemies to dominate
- Intel Gigabit Ethernet and LANGuard: Top-speed protected networking
- RAMCache: Speed up your game loads
- Gamer's Guardian: Highly-durable components and smart DIY features
- M.2: Ultra-speedy transfers for faster gaming
BRIGHTEN YOUR BUILD WITH CUSTOMIZABLE
RGB LED ILLUMINATION
Gaming is about your style, your personality — and your passion. B150I Pro Gaming/WiFi/Aura is the gaming motherboard that lets you inject passion to project your style and personality in full color! Aura, our all-new LED-illumination technology, lighting up an endless spectrum of color combinations coupled with a selection of fascinating and fun effects.
Aura
Customize your own favorite LED effect to cast a stunning multi-color glow across your build.
FLAWLESS AUDIO THAT
MAKES YOU PART OF THE GAME!
Be the best on the battlefield with B150I Pro Gaming/Aura's truly immersive SupremeFX audio and experience sound so alive with realism that it hands you the vital competitive edge needed to win. With near-lossless delivery and exclusive Sonic Radar II technology to pinpoint battlefield enemies before they spot you, SupremeFX sounds stupendous — and puts both your ears and frags in front of everyone else!
SupremeFX
Shielded audio, superior sound
ASUS-exclusive SupremeFX technology delivers high-fidelity, near-lossless audio no matter how frantic your game becomes. The purity and stability of the remarkable 112dB signal-to-noise ratio (SNR) is assured, with a shielded design, electromagnetic-interference (EMI) cover and voltage-protected 5V power supply. Supreme FX's superior components, including the trusted Realtek ALC1150 codec, maximize acoustic performance and eliminate interference – so you hear only the very best from your gaming headset or speakers!
A. Illuminated red line shielding
Banish analog interference and enjoy eye-catching, customizable lighting effects.
B. EMI cover
Effective shielding against electromagnetic interference preserves
the integrity of audio signals for the best quality.
C. 300Ω-headphone amplifier
Drive some of the very best headphones available for exceptional gaming-audio and music-listening experiences.
D. Premium Nichicon® audio capacitors
Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.
Sonic Radar II
Scan and detect to dominate!
Sonic Radar II displays a stealthy overlay that shows what your opponents and teammates are up to on the battlefield, all managed via a simple control panel and customizable game list. See the direction and origin of key in-game sounds, and practice your enemy-pinpointing skill, plus Audio Enhancement technology clarifies every last sound — so you hear the distant sound of enemy footsteps and become the hunter, not the hunted!
TOP-SPEED PROTECTED NETWORKING
Only the quickest shot survive, so B150I Pro Gaming/Aura banishes lag — letting you annihilate your foes as fast as your trigger finger! Our engineers pack in only the best networking technology, including tournament-level Intel® Gigabit Ethernet and ASUS-exclusive LANGuard and GameFirst technologies to keep your connection fast, so always fire first and watch your enemies fall.
Intel Gigabit Ethernet
More throughput, less CPU usage and great gaming experiences
Featuring the very latest Intel Ethernet (I219-V) for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay.
LANGuard
Pumped-up throughput. Best surge protection
LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your B150I Pro Gaming/Aura's connection and deliver pumped-up throughput, plus electrostatically-guarded and surge-protected components (ESD Guards) for 1.9X-greater tolerance to static electricity and 2.5X-greater protection (up to 15KV) against surges!
GameFirst
Team up to banish lag
GameFirst IV Beta optimizes network traffic for faster, lag-free online gaming — and now we've added Multi-Gate Teaming to team all your networks for maximum bandwidth and the smoothest-ever gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for the best performance.
Multi-Gate Teaming
Team all your network gateways for maximum bandwidth and assign connections to every application for the smoothest-ever gameplay.
PERFORMANCE LEVEL UP
Maxed-out performance means maximum gaming thrills, and with exclusive AI Suite 3's dashboard-style control panel you'll fine-tune almost every aspect of your B150I Pro Gaming/Aura-based system. Get the best balance between performance, cooling, stability, efficiency and aesthetics — all via a simple and intuitive interface.
Award-winning BIOS design
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way. In EZ Mode you can get set up very quickly, applying the date and time, fan profiles and Intel Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up favorites and shortcuts, record and review recent changes with Last Modified or make notes in Quick Notes.
CrashFree BIOS 3
Never again worry about corrupted BIOS, as CrashFree BIOS 3 lets you restore a PC to working order — even when it won't boot!
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
RAMCache
Speed your game loads
Uniquely-intelligent technology that effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache turns milliseconds into microseconds to boost game-load times to stratospheric levels!
Ultra-Fast Gaming Connectivity
Accelerate every transfer with next-level 802.11ac MU-MIMO WI-FI, and onboard M.2!
GAMER'S GUARDIAN FOR REAL-WORLD PROTECTION
Protect your back in the game and let B150I Pro Gaming/Aura protect all sides in the real world! Motherboard self-protection with loads of brilliant defenses, including our unique smart DIY features ensures long-term gaming is in your future.
Digi+ VRM
Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times!
DRAM overcurrent protection
All connection ports and DRAM are protected against overcurrent and short-circuit damage by onboard resettable fuses, extending your motherboard's life.
Highly durable components
Fine-quality, super-tough components are our watchwords. We fit only superior chokes, plus durable capacitors engineered to resist extreme temperature variations of between -55°C and 105°C —110% better than the industry standard.
Stainless steel back I/O
Crafted from chromium-plated, corrosion-resistant stainless steel, the input/output (I/O) panel is three times longer than ordinary panels!
Q-shield
0 pain!
Protect your hands from nicks and cuts.
Q-connector
1 piece
sorts all front-panel cables.
Q-DIMM
1 -sided
clips mean handling memory modules is a cinch — super simple and super secure.
Q-LED
4 LEDs
indicate problems with the CPU, memory, graphics card or boot device for quick diagnosis.
ESD Guards
2X-greater ESD protection for extended component lifespan
Electrostatic discharge (ESD) could mean game over for your rig, so B150 Pro Gaming/Aura is protected by ESD Guards to actively prevent ESD — ensuring longer component lifespan and providing system resilience that's two times greater than industry standards. Game on!
Audio connector
Capacitor protection on both front and back audio-output circuits.
LAN connector
ESD TVS diode protection and an anti-surge LAN connector protects against
USB 3.0/2.0 connectors
On-circuit transient-voltage-suppression (TVS)
DVI connector
Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
Keyboard and mouse connector
Additional on-circuit ESD TVS diodes.
BUILT FOR GAMING
B150I Pro Gaming/Aura is built for play, shaped by professional gamers and tested for gaming perfection — strong enough storm through the industry's most punishing labs workouts. We engineer and test for the finest quality, longevity, performance, stability and compatibility. Our world-class engineers are themselves avid gamers, and combine their own passion with the skills and demands of some of the planet's best players to create innovative gaming features everyone will crave. With B150I Pro Gaming/Aura you do more than just play — you'll experience gaming on the edge of reality.
THE POWER OF INTEL!
The Intel® B150 is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® B150 Express chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
