Performance
Motherboard form factor |
Micro ATX |
Motherboard chipset family |
Intel |
Audio system |
HD Audio |
Component for |
PC |
Memory
Supported memory clock speeds |
1066, 1333, 1600 MHz |
Non-ECC |
Y |
Unbuffered memory |
Y |
Supported memory types |
DDR3-SDRAM |
Memory channels |
Dual |
Memory slots type |
DIMM |
Number of memory slots |
4 |
BIOS
BIOS memory size |
8 MB |
BIOS type |
UEFI AMI |
Clear CMOS jumper |
Y |
ACPI version |
2.0a |
Processor
Maximum number of SMP processors |
1 |
Internal I/O
USB 2.0 connectors |
2 |
S/PDIF out connector |
Y |
USB 3.0 (3.1 Gen 1) connectors |
1 |
Number of SATA III connectors |
4 |
Number of SATA II connectors |
2 |
CPU fan connector |
Y |
Number of chassis fan connectors |
1 |
Number of EATX power connectors |
1 |
Front panel audio connector |
Y |
Graphics
Maximum graphics adapter memory |
1024 MB |
On-board graphics adapter |
Y |
Expansion slots
PCI Express x1 (Gen 2.x) slots |
2 |
PCI Express x16 (Gen 3.x) slots |
1 |
Processor special features
Intel® Turbo Boost Technology |
2.0 |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Back panel I/O ports
PS/2 ports quantity |
2 |
Headphone outputs |
1 |
Microphone in |
Y |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
VGA (D-Sub) ports quantity |
1 |
Additionally
Chipset |
Intel B85 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

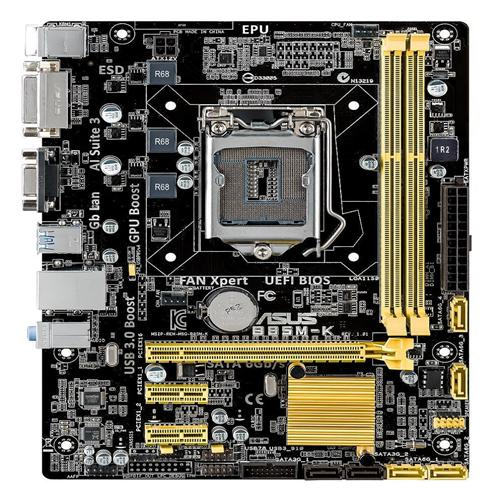

ASUS B85M-K. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, Supported memory clock speeds: 1066,1333,1600 MHz. Processor family: Intel, Compatible processor series: Celeron,Core i3,Core i5,Core i7,Pentium, Processor socket: LGA 1150 (Socket H3). Supported storage drive interfaces: Serial ATA II, Serial ATA III. LAN controller: Realtek 8111G, Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard chipset family: Intel, Motherboard chipset: Intel B85
