Security
| Firewall security |
NAT |
| System event log |
Y |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
DSL features
| DSL specification |
G.992.1, G.992.2, G.992.3, G.992.5 |
| ADSL2+ |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Other features
| xDSL connection |
Y |
| Rack mounting |
N |
| Frequency band |
2.4 GHz |
| Operating temperature (T-T) |
14 - 122 °F |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
2 |
Management features
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| Supported network protocols |
IPv4 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Output power |
12 V/0.8 A |
| Ethernet LAN connection |
Y |
| Filtering |
IP |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
2.4GHz, 2x 5dBi, ADSL2+, 300Mb/s, 802.11b/g/n, Fast Ethernet, IPv4, 1x RJ11, 4x RJ45, WEP/WPA/WPA2/WPS, 12V/0.8A DC, 300g, Black/Grey

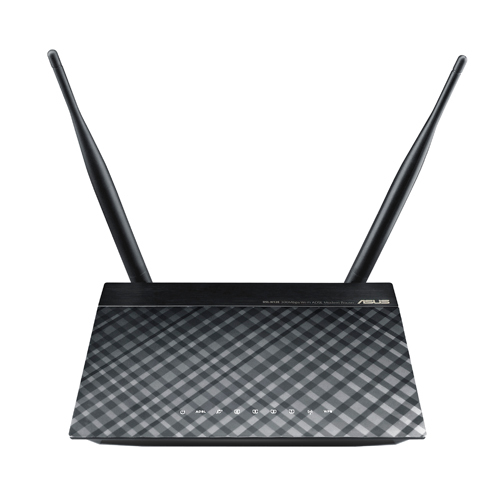

Wireless-N300 ADSL Modem Router
- 11n Wireless ADSL modem Router.
- EZ WPS connection with physical WPS push button.
- Eco-friendly, up to 72% power saving.
Save the planet and your pocket
Compared with generic Wireless-N routers, ASUS ECO-WiFi CPU reduces up to 72% of energy consumption and utility cost.
Z WPS Connection
EZ WPS Enables you to set up a secure wireless network by 2 steps.
Press the WPS button on the wireless adapter
The WPS Wizard pops up and starts searching for WPS-supported routers.
Press the WPS button on the ASUS router
The ASUS router accepts the secure Wi-Fi connection with the client, and the setup is done.
