Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Security
| VPN support |
IPSec Pass-Through\nPPTP Pass-Through\nL2TP Pass-Through\nPPTP server\nPPTP client\nL2TP client |
| Firewall |
Y |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| WPS push button |
Y |
| Web-based management |
Y |
Wireless LAN features
| Wi-Fi band |
Single-band (2.4 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Design
| LED indicators |
LAN, Power, WLAN |
WAN connection
| Ethernet WAN |
Y |
| 3G/4G USB modem compatibility |
N |
| DSL WAN |
Y |
| SIM card slot |
N |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
2 |
Software
| Mac operating systems supported |
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
Power
| Power source type |
AC |
| Power supply |
6 W |
Ports & interfaces
| USB port |
N |
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

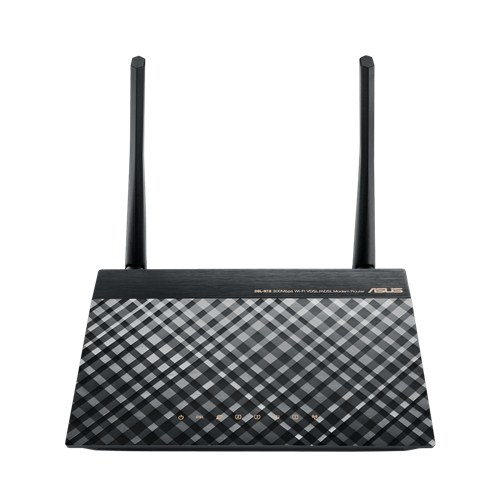

DSL-N16 N300 Wireless VDSL/ADSL 2+, 2.4GHz, 300Mbps, 4x 10/100Mbps LAN, 802.11b/g/n
DSL-N16 300Mbps Wi-Fi VDSL/ADSL Modem Router
- Ethernet WAN allows to use as an DSL modem router or stand-alone wireless router
- Compatible with VDSL2, ADSL2/2+, ADSL, fiber and cable services for complete future-proofing
- Fast Ethernet ports for the reliable internet performance
- VDSL/ADSL WAN multi service for IPTV support
- PPTP VPN server and PPTP/L2TP VPN client support
- Four independent SSIDs for flexible and secure Wi-Fi network configuration
The ASUS DSL-N16 ADSL/VDSL wireless modem router is stylish, truly multi-functional, and has reliable performance. It can connect to the internet using either the Ethernet or DSL WAN (Wide Area Network) ports, allowing customers to use it as a either a modem router or a standalone wireless router. Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services.
The easy-to-use ASUSWRT graphical user interface unlocks the power of DSL-N16 giving robust control to optimize your network for you. 30-second setup and easy traffic management means even network newbies can enjoy its sophisticated features, while power users will love its IPv6 support, multiple wireless SSIDs and encrypted VPN access.
Total flexibility with DSL and Ethernet Internet connections
DSL-N16 has two ways to connect to the Internet, with a choice of DSL and software Ethernet WAN. You can use DSL-N16 as a DSL modem Wi-Fi router or a standalone Wi-Fi router according to your needs. And with the ability to switch instantly between connections if one fails (and switch back again when it’s fixed) or combine multiple connections for more bandwidth, it’s perfect for reliable, always-on internet connectivity.
Robust control and optimization with ASUSWRT
With the ASUSWRT Dashboard, setup, monitoring, and control of network applications are all found in one intuitive user interface. As well as 30-second setup, multi-device detection, and flexible settings that make the most of your network performance, ASUSWRT has been upgraded with special DSL tools that show the signal-to-noise ratio in dB, allowing you to check stability of the DSL connection. The DSL traffic monitor shows the incoming and outgoing traffic on the WAN, wired and 2.4GHz wireless networks, while DSL Feedback allows you to feedback any comments, suggestions or connection issue directly to a technical support team with DSL logs automatically included.
Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the DSL-N16 has Quality of Service (QoS) features that let you select how much bandwidth is prioritized for virtually any task. Try it.
Easy 30-second router setup
Use your smartphone, tablet, or PC to effortlessly set up your ASUS router in less than 30 seconds* and in only 3 easy steps. Simply connect the cables to the router, open a Web browser, and follow the setup wizard to get you to the internet in no time.
VPN server and client for encrypted remote connection
With the virtual private network (VPN) server and VPN client, you can access your home network remotely or surf the internet with encryption, no need for paid VPN services or a dedicated VPN server.
Dedicated Wi-Fi for your visitors
Share your internet connection with your guests with no need to share your personal password or network resources. ASUS Guest Network supports up to three separate guest networks, each with its own usage limits and password. Guests cannot access your primary network or any other connected devices.
Simple setup, powerful features with real-time traffic and connection quality monitoring
With the easy to use ASUSWRT Dashboard, you can setup, monitor and control your network from one intuitive interface.
DSL-N16 features special ADSL-related enhancements to the intuitive ASUSWRT graphical interface, inlcuding a signal-to-noise ratio (SNR) measuring tool for monitoring the stability of an ADSL connection. A traffic monitor shows the data sent and received via the WAN, wired and wireless networks, while a reporting tool lets you send feedback about connection issues directly to a technical support team, with technical log files automatically included.
