Security
| Firewall security |
NAT, SPI |
| MAC address filtering |
Y |
Other features
| Downstream data rate |
24 Mbit/s |
| xDSL connection |
Y |
| Frequency range |
2.4 - 5 GHz |
| Frequency band |
2.4 & 5 GHz |
| USB ports quantity |
2 |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
600 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
3 |
Management features
| Reset button |
Y |
| Web-based management |
Y |
Additionally
| Transfer rate (Mbps) |
54 Mbit/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
RJ11, RJ45, WiFi, USB black, 400 g
Dual-CPU home gateway and entertainment center

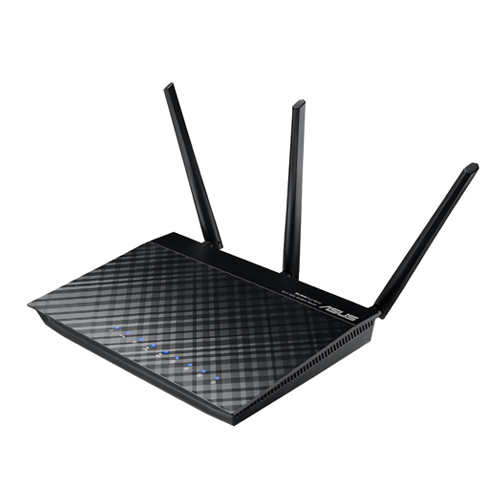

As the first ASUS N600 simultaneous dual-band Wi-Fi ADSL router, the DSL-N55U provides a stylish design, sophisticated features, and easy setup alongside supreme wireless and wired networking for the home.
Two USB 2.0 ports allow the DSL-N55U to share printing and scanning functions on a network, and operate as high-speed NAS (Network Attached Storage) when an external storage device is connected. It is fully DLNA certified, and can act as a media server and home entertainment center. Any device, such as a PS3, iPhone, or Eee Pad can directly stream music and video wirelessly through the DSL-N55U.
For wired networking, four Gigabit Ethernet ports provide excellent capacity. Support for up to 300,000 data sessions means the DSL-N55U has around 20 times the networking capacity of other home routers. Data transmission stays fast even when the router is under heavy load, and easy-to-use QoS settings assure that important traffic — VoIP calls or online gaming — isn’t adversely affected by large file downloads.
