BIOS
| BIOS memory size |
4 MB |
| ACPI version |
2.0a |
| BIOS type |
AMI |
Internal I/O
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of SATA III connectors |
5 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| S/PDIF out connector |
Y |
| USB 2.0 connectors |
2 |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
Graphics
| Graphics adapter family |
AMD |
| On-board graphics adapter |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| eSATA ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| Headphone outputs |
3 |
| PS/2 ports quantity |
1 |
Memory
| Non-ECC |
Y |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express slots version |
2.0 |
Networking
| Bluetooth |
Y |
| Networking features |
Gigabit Ethernet |
Performance
| Component for |
PC |
| Audio system |
ALC892 |
Additionally
| Graphics |
Radeon HD 6310 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Chipset |
AMD Hudson M1 |

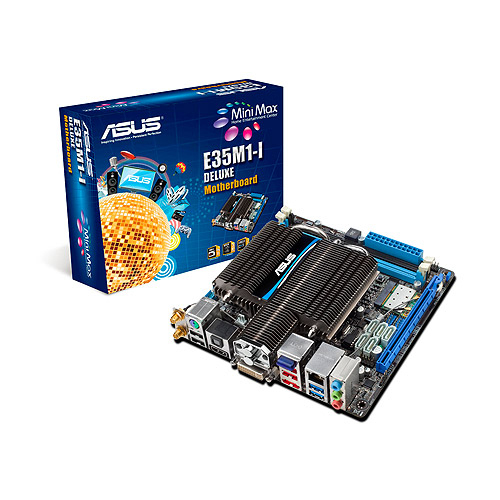

E35M1-I DELUXE, AMD E-350, AMD FCH A50 (Hudson M1), DDR3, SATA3, USB 2.0, USB 3.0, Gigabit Ethernet, Bluetooth 3.0, mini iTX
<b>Integrated AMD Dual-Core Processor E-350 with AMD Radeon™ HD 6310 Graphics</b>
This motherboard supports integrated AMD Dual-Core Processor E-350 with AMD Radeon™ HD 6310 Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features single-channel DDR3 1066 memory support and accelerates data transfer rate up to 2.5GT/s.
<b>AMD® FCH A50 (Hudson M1)</b>
AMD® FCH A50 (Hudson M1) is designed to support up to 2.5GT/s interface speed and PCI Express 2.0 x 16 (at x4 speed) graphics. It supports 6 x SATA6Gb/s ports and 14 x USB 2.0 Ports.
<b>Complete USB 3.0 Solution</b>
[USB 3.0 Support] ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. The E35M1-I DELUXE affords greater convenience to high speed connectivity.
<b>Native SATA 6Gb/s Support</b>
The AMD Hudson M1 Chipset natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
