Expansion slots
| PCI Express slots version |
2.0, 1.0 |
Networking
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Storage
| Hot-swap hard drive bays |
Y |
| Number of hard drives supported |
8 |
Memory
| Maximum internal memory |
192 GB |
| Maximum UDIMM memory |
48 GB |
| Supported DIMM module capacities |
8GB, 4GB, 2GB, 1GB, 16GB |
| Supported memory types |
DDR3-SDRAM |
Power
| Number of power supply units |
2 |
Other features
| Graphics adapter family |
Aspeed |
Processor
| Motherboard southbridge |
Intel ICH10R |
| Number of processors supported |
2 |
Graphics
| Maximum graphics adapter memory |
8 MB |
Additionally
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
6.4 GT/s |
| Chipset |
Intel 5520 |
| Ethernet LAN (RJ-45) ports quantity |
3 |

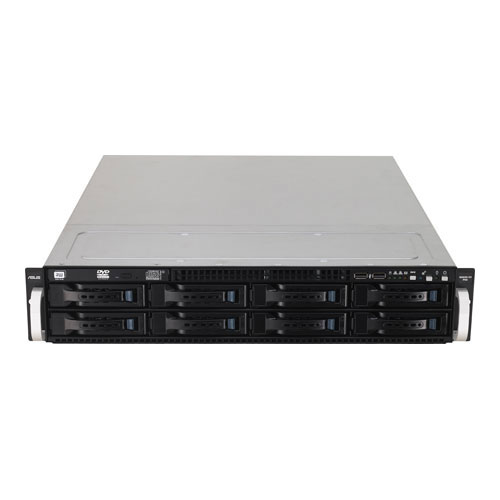

2 x Socket LGA1366, Intel 5520 IOH + NVIDIA NF200, 18 x DDR3 Max. 192GB RDIMM/Max. 48GB UDIMM, SATA/SAS, 8 x Hot-swap 3.5" HDD, 2 x Intel 82574L + 1 x Mgmt LAN, 2U
<b>First ever high density 2U parallel computing design</b>
<b>Leading advanced system architecture</b>
- Features dual all-new Intel® Xeon® 5600 series processors with Intel® Core™ microarchitecture for significant performance increases
- Supports 18 DIMM slots and up to 48GB/144GB high scalability memory for intense applications. DDR3 modules deliver higher speeds and more bandwidth with lower power consumption
- Embeds up to four NVIDIA® Tesla™ M2050/M2070/M2090 GPUs on full PCI-E Gen2 x16 slots with up to 2.66 teraflops, doubling precision performance
- The NVIDIA® Tesla™ M2090 GPU Computing Module is the world’s fastest parallel computing processor for HPC
<b>8+1 flexible expansion</b>
- Eight PCI-E Gen2 x16 slot design supports up to four double-deck GPU computing cards for professional graphics
- Flex-E technology allows automatic switching between one PCI-E x16 and two PCI-E x8 links
- Additional PCI-E riser module compatible with both half-length/low-profile PCI-E cards and ASUS PIKE series cards
<b>Intelligent system fan control</b>
- Three independent smart system fans, two for GPU areas and one for general motherboard cooling
- Adjusts fan speed automatically according to system load to optimize cooling and energy saving
<b>Flexible high storage capacity</b>
- Designed with eight hard drive bays to support SAS or SATA drives
- Optional ASUS PIKE meets the various requirements of RAID functionality
<b>High reliability</b>
- 1600W 80PLUS Platinum power supply delivers reliable and highly efficient power
- Hot-swap hard drive design allows downtime-free drive replacement
<b>Remote control and management</b>
- Bundled ASMB4-iKVM module offers advanced server management
- KVM-over internet provides OS-independent manageability
- Ideal for remote office applications
