Design
| Motherboard form factor |
SSI EEB |
Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
1 |
| Number of IEEE1394 connectors |
1 |
| Chassis intrusion connector |
Y |
Memory
| Supported UDIMM clock speeds |
800, 1066, 1333 MHz |
| Non-ECC |
Y |
| Number of DIMM slots |
16 |
| ECC |
Y |
| Memory channels |
Quad |
| Supported UDIMM module capacity |
1GB, 2GB, 4GB |
| Supported RDIMM module capacity |
16GB, 1GB, 2GB, 4GB, 8GB |
| Supported RDIMM clock speeds |
800, 1066, 1333 MHz |
| Maximum UDIMM memory |
64 GB |
| Maximum RDIMM memory |
256 GB |
Graphics
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
4 |
| PCI Express x8 slots |
1 |
| PCI Express slots version |
2.0 |
Networking
| LAN controller |
Intel 82574L |
Processor
| Processor socket |
Socket G34 |
Weight & dimensions
| Depth |
330.2 mm |
| Width |
304.8 mm |
Certificates
| Certification |
FCC, CFR47 Part 15, Class B, CE, EN55022 & EN55024, C-TICK |
Additionally
| Chipset |
AMD SR5690 |
| Ethernet LAN (RJ-45) ports quantity |
2 |

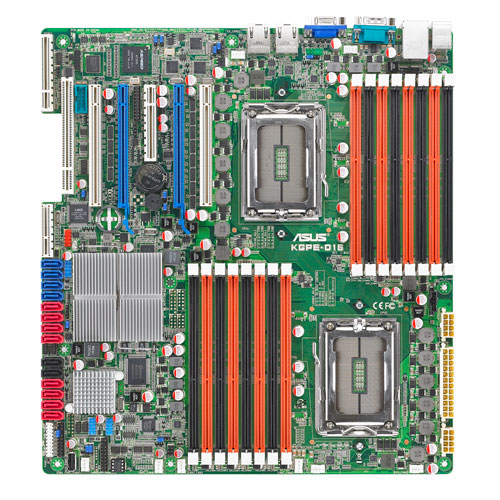

8/12 Core AMD Opteron™ 6100, 2x CPU, 16x DIMM, 6x SATA2, Socket G34 (LGA 1944), Max 64GB (UDIMM), Max 256GB (RDIMM)
Support Up-To-Date AMD 12 Core CPU
KGPE-D16 is based on latest AMD G34 chipset architecture to support 45nm Opteron™ 6000 series processors. The platform is designed for highly threaded application, delivering 12-core/ 8-core multi-core performance, quad HT3 links with up to 6.4GT/S interconnect rate per link, and 12 MB shared L3 cache.
Standard EEB with 16 DIMMs & Industrial Standard Riser Card Slot (Slot 6)
KGPE-D16 is designed in EEB (12” x 13”) form factor, with 16 DDR3 1333 memory DIMMs to support up to 256GB (RDIMM). By supporting industrial standard PCI-E x16 (Gen2 x16 link) Full Height & Full Length Card in 1U, this board offers you highest memory capacity without source for proprietary chassis & riser solution.
Dual Use for Server (rack ready) & Workstation
The ASUS Flex-E technology provides the flexibility to auto-switch between 2 true PCI-E x16 Link (support 2 double deck graphic cards) or 1 PCI-E x16 Link & 2 PCI-E x8 Link (for I/O expansion). Moreover, the boards supports ASUS MIO audio card, which offers enhanced signal-to-noise ratio in a 7.1 surround channel setup to deliver exhilarating surround sound for professional usage.
High Quality Components for Greater System Reliability & 85% Power Efficiency
ASUS is the first company to phase in 6-Phase CPU power, 3-Phase memory power and All Ultra Long Life Solid capacitors on serverboard in the market. These features not only provide the support for high-end 140W CPU, but also deliver highly efficient and reliable operations.
