Performance
| Motherboard form factor |
ATX |
| Audio system |
VT1708B |
Internal I/O
| USB 2.0 connectors |
6 |
| Number of SATA connectors |
6 |
| Power fan connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Memory
| Non-ECC |
Y |
| ECC |
Y |
| Number of memory slots |
4 |
| Maximum internal memory |
8 GB |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| COM ports quantity |
1 |
Additionally
| Chipset |
AMD 770 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

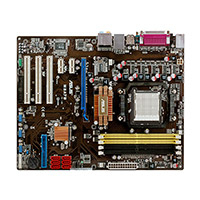

M3A78 - AMD Socket AM2+ / AM2, AMD 770/SB700, 5200/MT/s HyperTransport, DDR2 1066/800/667/533 ECC, Non-ECC, Gigabit LAN, ATX
AMD® Socket AM2+ Phenom™ FX / Phenom™ / Athlon™ Support
This motherboard supports AMD AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus.
HyperTransport 3.0 Support
Provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment
AMD Cool ´n´ Quiet! Technology
The AMD 780V Northbridge is the latest AMD chipset designed for both HT1.0 and 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and external graphics in PCI Express™ 2.0 standard.It features the integrated ATI RV610-based graphics and fully DirectX 10.0 comliant.
64-bit CPU support
64-bit computing, the next generation technology to replace the current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming.
PCIe 2.0 support
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
Serial ATA 3Gb/s
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard SB700 southbridge allows RAID 0, RAID 1,RAID 10 configurations for six SATA connectors.
Gigbit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
High Definition Audio
Enjoy high-quality sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-detect feature,which automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, meaning there will be no more confusion of Line-in, Line-out and Mic jacks.
ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.
Max. 10 USB 2.0 ports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.
