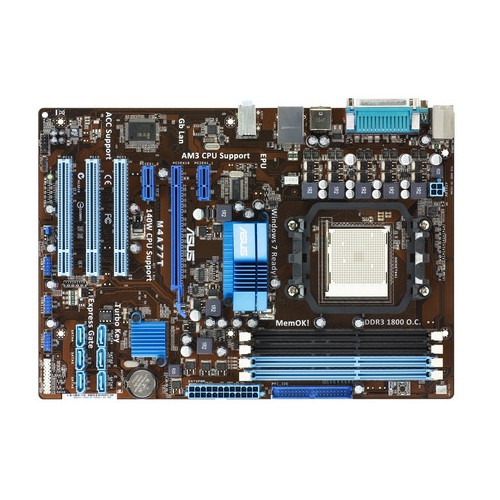

ASUS M4A77T AMD 770 Socket AM3 ATX motherboard

ASUS M4A77T AMD 770 Socket AM3 ATX motherboard

MPN: M4A77T
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor ATX
Audio system High Definition Audio

BIOS

BIOS memory size 8 MB
ACPI version 2.0

Back panel I/O ports

Parallel ports quantity 1
Serial ports quantity 1
PS/2 ports quantity 1
Headphone outputs 3

Processor

Maximum number of SMP processors 1

Other features

Controller (2nd) interface type IDE/SATA

Internal I/O

USB 2.0 connectors 6
S/PDIF out connector Y
Number of SATA connectors 6
Number of Parallel ATA connectors 1
ATX Power connector (24-pin) Y
CPU fan connector Y
Chassis intrusion connector Y
Number of chassis fan connectors 1
Number of EATX power connectors 1
Front panel audio connector Y

Memory

Non-ECC Y
ECC Y
Number of memory slots 4
Maximum internal memory 16 GB
Controller type Dual Channel

Expansion slots

PCI slots 3
PCI Express x16 slots 1
PCI Express x1 slots 2

Packaging content

Drivers included Y

Additionally

Chipset AMD 770
Ethernet LAN (RJ-45) ports quantity 1
M4A77T, 140W CPU, DDR3, 770/SB710, 12 x USB2, ATX This motherboard supports AMD Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process.

- Core Unlocker
- HyperTransport 3.0 Support
- Dual-Channel DDR3 1800(O.C.)
- Turbo Key
- MemOK!
- High Definition Audio
- ASUS Express Gate
- ASUS CrashFree BIOS3
- ASUS Q-Fan
- ASUS EZ Flash2
