BIOS
| BIOS memory size |
1 MB |
| ACPI version |
2.0a |
| BIOS type |
AMI |
Performance
| Motherboard southbridge |
AMD SB850 |
| Component for |
PC |
| Audio system |
VIA VT1818 |
Memory
| Non-ECC |
Y |
| ECC |
Y |
| Memory channels |
Dual |
| Number of memory slots |
4 |
| Maximum internal memory |
16 GB |
Internal I/O
| Power fan connector |
Y |
| Chassis intrusion connector |
Y |
| CPU fan connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of SATA III connectors |
6 |
| ATX Power connector (24-pin) |
Y |
| Number of Parallel ATA connectors |
1 |
| S/PDIF out connector |
Y |
| USB 2.0 connectors |
3 |
| Number of chassis fan connectors |
1 |
Expansion slots
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
1 |
| PCI slots |
3 |
| PCI Express x1 slots |
1 |
| PCI Express slots version |
2.0 |
Graphics
| On-board graphics adapter |
N |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| S/PDIF out port |
Y |
| Headphone outputs |
3 |
Networking
| Networking features |
Gigabit Ethernet |
Other features
| Manageability features |
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE |
Additionally
| Chipset |
AMD 870 (RX881) |
| System bus data transfer rate |
5.2 GT/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |

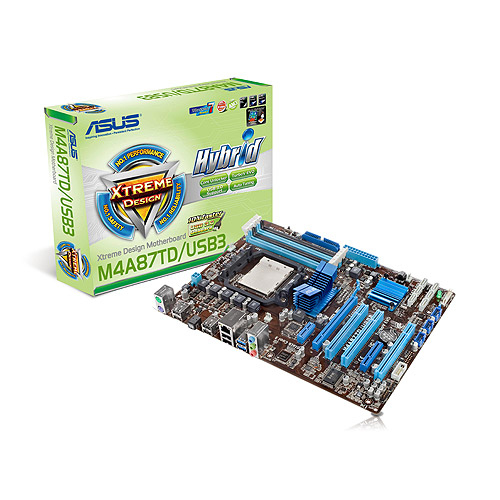

M4A87TD/USB3, AM3, AMD 870 / SB850, DDR3, SATAII, USB 2.0, USB 3.0, Gigabit Ethernet, ATX
This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.
AMD 870 Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.
<b>Double Speed; Double Bandwidth</b>
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
The motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/ 1600/ 1333/ 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
<b>Intelligently Unlocks True Core Performance</b>
ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simply switch. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes.
The AMD® SB850 Southbridge natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
<b>Realize the True Future!! - TRUE USB 3.0 Support!</b>
Experience ultra-fast data transfers at 4.8 Gb/s with USB 3.0–the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.
