Performance
| Motherboard form factor |
ATX |
| Audio system |
VT1708S |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600, 1800 MHz |
| Non-ECC |
Y |
| ECC |
Y |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
AMI |
| ACPI version |
2.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| PS/2 ports quantity |
2 |
| S/PDIF out port |
Y |
| COM ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
6 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
256 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Networking
| Networking features |
RTL8211CL-VB Gigabit LAN |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

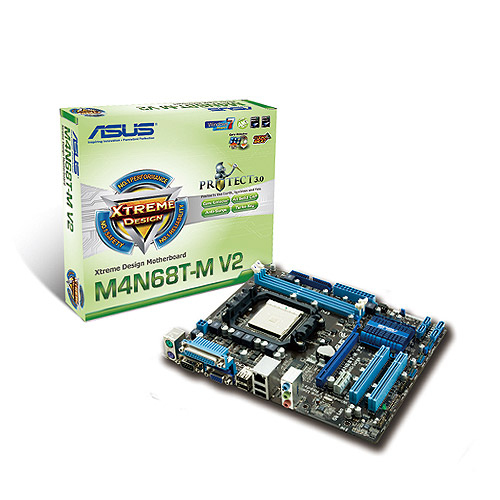

M4N68T-M V2 - AMD Socket AM3, NVIDIA Geforce 7025/nForce 630a, 2000/1600 MT/s, 1 x PCIe x16, 256 MB, RTL8211CL-VB Gigabit LAN, uATX
AMD® Phenom™ II/Athlon™ II/ Sempron™ 100 Series CPU support
This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 2000MT/s via HyperTransport™ 1.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.
Dual-Channel DDR3 1800(O.C.)
This motherboard supports DDR3 1800(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.
Turbo Key
ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!
Anti-Surge Protection
This special design prevents expensive devices and the motherboard from damage caused by power surges.
Core Unlocker
ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simple switch. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes. * The actual overclocking result depends on the system configuration.
100% All High-quality Conductive Polymer Capacitors!
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity
EPU
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money!
ASUS C.P.R.
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
