Back panel I/O ports
| Parallel ports quantity |
1 |
| S/PDIF in port |
N |
| PS/2 ports quantity |
2 |
| COM ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Manageability features |
WOL, PXE, RPL, WOR, PME Wake Up |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
Memory
| Non-ECC |
Y |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
| Expansion slots |
1 X PCIe x16\n1 x PCIe x1\n2 x PCI |
Performance
| Audio system |
IA VT1708B 8 -Channel HD Audio CODEC |
Networking
| Networking features |
10 / 100 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

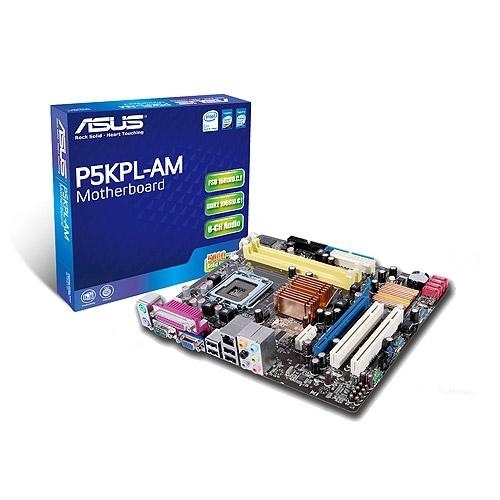

P5KPL-AM - Intel LGA775 socket, Intel Q35 / ICH7 , Core2 Quad / Core2 Extreme /Core2 Duo / Pentium D/ Pentium 4/Celeron E1000 & Celeron 400 Series, 2 x DIMM, Max. 4GB, DDR2 1066 / 800 / 667, 1 x PCIe x16, 1 x PCIe x1, 2 x PCI, uATX Form Factor
Valuable Intel G31 uATX solution with FSB overclocking 1600MHz!
- Intel Core2 Quad Ready
- Intel 45nm CPU Ready
- FSB 1600(O.C.)/1333/1066/800MHz
- Intel G31/ICH7
- Dual channel DDR2 1066(O.C.)/800/667
- EZ Flash2 & CrashFree BIOS3
- 8 Channel High Definition Audio
Intel Quad Core Processor Ready
This motherboard supports the latest Intel Quad-core processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. It´s excellent for multi-tasking, multi-media and enthusiastic gamers with 1600(O.C.)/1333/1066/800MHz FSB. Intel® Quad-core is one of the most powerful CPU in the world.
Intel G31 Chipset
The Intel G31 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel Graphics Media Accelerator 3100. It supports 1333MHz FSB (front-side-bus), and delivers breakthrough advances in 3D and 2D graphics; and video capabilities. This integrated chipset is able to meet the changing display requirements of visually rich applications and features the Intel Clear Video Technology - which trailblazes new standards in high-definition video, crisp imaging, and accurate color control.
Dual-Channel DDR2 1066(O.C.)
Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market.
8 Channel High Definition Audio
Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
Compliance with the RoHS Directive
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
LGA775 Intel Core2 Processor
This motherboard supports the latest Intel Core2 processors in LGA775 package. With new Intel Core microarchitecture technology and 1600(O.C.)/1333/1066/800MHz Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
FSB 1600 support (O.C.)
ASUS´s exclusive overclocking design now unleashes the ultimate potential of the Intel Core2 processor. With the new Intel 45nm micro-architecture technology and FSB 1600 (O.C.) / 1333 / 1066 / 800MHz, this motherboard allows you to enjoy the latest technology supported by one of the most powerful and energy efficient CPUs in the world.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs.
SATA 3Gb/s
Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility.
EZ Flash2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a floppy disk before entering the OS.
ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.
