Performance
| Motherboard form factor |
ATX |
| Audio system |
Realtek ALC1200, 8-channel HD Audio |
Other features
| Manageability features |
WOL @ PME, WOR @ PME, WOR @ Ring, Chassis Intrusion, PXE |
| Controller (2nd) interface type |
UltraDMA 133/100/66 |
| Controller interface type |
SATA |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
6 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| Number of IEEE1394 connectors |
1 |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
2 |
Memory
| Non-ECC |
Y |
| Number of memory slots |
4 |
| Maximum internal memory |
16 GB |
Expansion slots
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
3 |
| Expansion slots |
2 x PCI E 2.0 x 16\n3 x PCI E x1\n2 x PCI |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
1 |
| S/PDIF out port |
Y |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

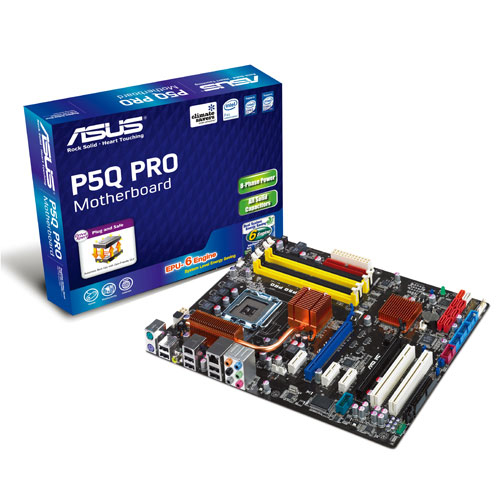

P5Q PRO - Intel Socket 775, Intel P45 / ICH10R, Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium dual-core / Celeron dual-core / Celeron CPU, 4 x DIMM, Max. 16GB, DDR2 1200/1066/800/667, 2 x PCI E 2.0 x16, 3 x PCI E x 1, 2 x PCI, Gigabit LAN, ATX Form Factor
The best computing platform for any purpose!
- Intel LGA775 Platform
- Intel P45 chipset
- ASUS 8-phase Power Design
- Dual-channel DDR2 1200/1066/800/667 MHz
- 100% High-quality Japan-made Conductive Polymer Capacitors!
- VRM 5000hrs lifespan @105°C, 500,000hrs @65°C
- ASUS EPU-6 Engine
- ASUS Express Gate
- ASUS Drive Xpert
- VRD11.1 CPU support (backward support VRD10.X CPU)
The P5Q PRO is an Intel P45 chipset-based motherboard that combines powerful performance with great energy efficiency; and supports DDR2 1200MHz dual-channel memory architecture and two PCI Express 2.0 x16 lane for extreme graphics performance. It also comes with the world´s best ASUS EPU -6 Engine, allowing the CPU power supply to be digitally monitored and fine-tuned with improved VRM efficiency in heavy or light loadings – attaining the best possible power efficiency and energy savings to help save the environment. The P5Q PRO also supports ASUS Express Gate– an Linux OS bootup for instant access to the Internet in 5 seconds.
