Networking
| Networking features |
Gigabit Ethernet |
Performance
| Motherboard form factor |
Micro ATX |
| Overclocking features |
ASUS C.P.R.\nSFS |
| Audio system |
ADI AD1986A SoundMAX 6-ch. CODEC |
Back panel I/O ports
| Parallel ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Manageability features |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL |
| Controller (2nd) interface type |
Serial ATA |
| Controller interface type |
UltraDMA 133/100/66/33 |
| Special features |
CrashFree BIOS 2\nASUS EZ Flash 2\nASUS Q-Fan\nMyLogo |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
256 MB |
Memory
| ECC |
N |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Expansion slots
| Expansion slots |
1x PCI-E x16\n1x PCI-E x1\n2x PCI 2.2 |
Additionally
| Chipset |
VIA P4M900 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel LGA775 Pentium 4 CPU
This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 1066/ 800/ 533MHz FSB, Hyper-Threading Technology and core-speeds up to 3.6GHz and beyond, Intel's LGA775 Pentium 4 is one of the fastest desktop processors to date.
Intel Core 2 Duo
This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066/800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPUs in the world.
Support Dual-Core CPU
This motherboard supports Intel® Pentium® D/Pentium® 4/Celeron® dual-core processors built on the 65-nanometer (nm) process technology with copper interconnect. Dual-core processors contain two physical CPU cores with dedicated L2 caches to meet demands for more powerful processing. Intel®'s 65nm process is the most advanced chip manufacturing technology, delivering breakthrough performance, enhanced media experience, and low power consumption. Intel® 65nm dual-core processors utilize the latest package technologies for a thinner, lighter design without compromising performance.
Single-Channel DDRII 667
DDR2 is the next generation memory technology to replace the current DDR. With initial speeds from 667MHz, DDR2 memory provides bandwidth up to 5.3GB/s.
Powerful Integrated Graphics

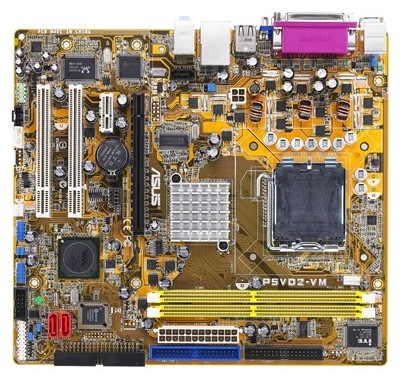

The P5VD2-VM delivers powerful integrated 2D and 3D graphics engine that provides hight performance along with functionality and value.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s.
SATA on the Go
The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, and jack-sensing feature.
Gigbit LAN
Gigabit LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice.
S/PDIF-out
This motherboard provides convenient connectivity to external home theater audio systems via an S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
ASUS CrashFree BIOS 2
The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.
ASUS EZ Flash 2
EZ Flash 2 is a user-friendly BIOS update utility. Simply press the predefined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
ASUS Q-Fan
ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.
Green ASUS RoHS Compliant
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.
