Design
| Motherboard form factor |
Mini ITX |
| Component for |
Server |
Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Number of DIMM slots |
2 |
| ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Supported UDIMM module capacity |
2GB, 4GB |
| Maximum internal memory |
16 GB |
Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Internal I/O
| USB 2.0 connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
2 |
Processor
| Number of processors supported |
1 |
| Intel Xeon series |
E3-1200 |
| Processor manufacturer |
Intel |
| Processor number of cores supported |
2, 4 |
| Processor socket |
LGA 1150 (Socket H3) |
Graphics
| On-board graphics adapter memory |
32 MB |
| Parallel processing technology support |
Not supported |
| On-board graphics adapter model |
Aspeed AST2300 |
Networking
| LAN controller |
Intel I210AT |
| Wi-Fi |
N |
Weight & dimensions
| Depth |
170 mm |
| Width |
170 mm |
Storage controllers
| RAID levels |
1, 5, 10 |
| Hard drive interface |
Serial ATA II, Serial ATA III |
Operational conditions
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
20 - 90% |
Additionally
| Chipset |
Intel C222 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
10 - 35 °C |
LGA1150, Intel C222, 2x UDIMM DDR3, PCI-E, Mini ITX
Optimized Computing and Management Power in Mini-ITX

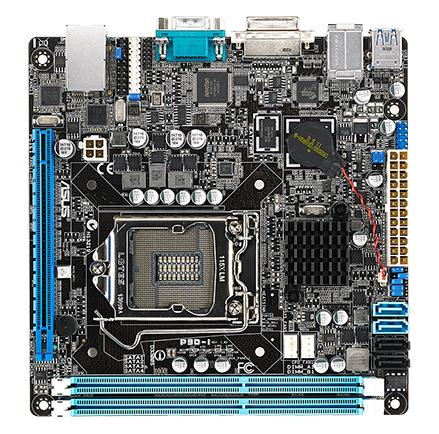

ASUS P9D-I is the mini-ITX form factor serverboard. Despite its diminutive appearance, the P9D-I retains the advantages of other P9D series motherboards including supporting the latest Intel® Xeon® E3-1200 v3 Processor Family with digital power solution and ASMB7 onboard. With the spacing saving advantage, P9D-I is exclusive to meet the diverse applications in small form factor servers, data center, front-end web server (web hosting) and etc.
Mini-ITX Compact Form Factor Increases Density
As a slim size serverboard, the 6.7” x 6.7” Mini ITX form factor of P9D-I fits for various small form factor appliance servers. In addition, P9D-I can be easily integrated in short depth chassis, thus P9D-I no doubt increases the density in a rack cabinet to provide higher computing power per rack than before.
Dual Intel® I210AT Gigabit Ethernet
The ASUS P9D-I ships with dual server-class Intel® Ethernet ports with the I210AT controllers, which doubles queues compared to previous-generation Intel® 82574L controllers. This is better for virtualization applications. In addition, the dual LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. This design greatly reduces data processing bottlenecks during network traffic.
High power efficiency with digital power control
Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste and provides more stable voltage. P9D-I power efficiency reaches an impressive 92%.
Comprehensive server management: ASMB7-iKVM and ASWM Enterprise
The ASMB7-iKVM onboard enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB7 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface.
