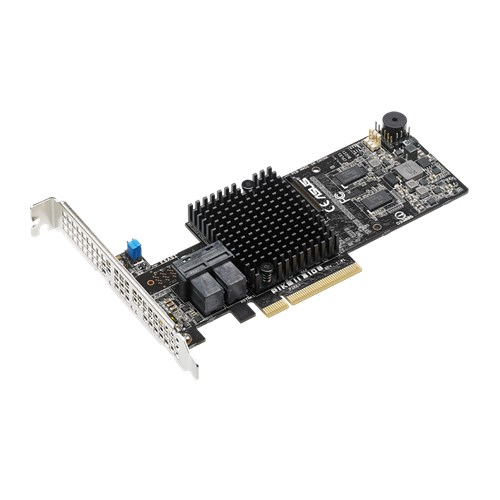

ASUS PIKE II 3108-8I/240PD/2G PCI Express 3.0 12Gbit/s RAID controller

LSI SAS 3108, SAS 12Gb/s, RAID 0/RAID 1/RAID 10/RAID 5/RAID 6/RAID 50/RAID 60, 2GB Cache <b>SAS 12Gb/s Storage Solution with 8 Internal Ports</b>
ASUS PIKE II 3108-8i/240PD/2G (Max. Physical Disk Qty for RAID: 240) is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6 and RAID 60 data protection. Just placing the PIKE card can immediately enlarge the capacity and improve the performance, making it the great upgrade option.

<b>Storage solution with eight ports of internal 12Gb/s SAS connectivity</b>

- PCI-E x8 interface
- Internal mini-SAS HD connectors
- Switch (for more than one card)
- HBLED1(HEARTBEAT LED): The LED shows the firmware heartbeat information.(blinking)
- DRLED1(Dirty cache LED): Write Pending(light)
- FAILLED1(Global Drive Fault LED): Drive Fault Detected(light)
- CacheVault connector

<b>Package Content</b>
- ASUS PIKE II 3108-8i/240PD/2G SAS RAID card
- Support DVD

<b>System Requirement</b>
- ASUS Server motherboard
- PCI-E Gen3 slot
- SAS or SATA hard disk drives
- Mini-SAS HD cable
- Supporting Windows® and Linux Operating systems
- Appropriate thermal solution
- Certified power supply module
- Ensure to update BIOS to the latest version before using PIKE II 3108 series on ASUS Z9 or P9 series platform
