Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133, 2400 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
6.0 |
Internal I/O
| USB 2.0 connectors |
1 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
2 |
| Number of EATX power connectors |
1 |
| Serial port headers |
1 |
| Number of M.2 (M) slots |
2 |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity |
2 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
2 |
| PCI Express x1 (Gen 3.x) slots |
2 |
Processor special features
| Intel® Turbo Boost Technology |
2.0 |
Additionally
| Chipset |
Intel B250 |
| Intel Optane technology ready |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

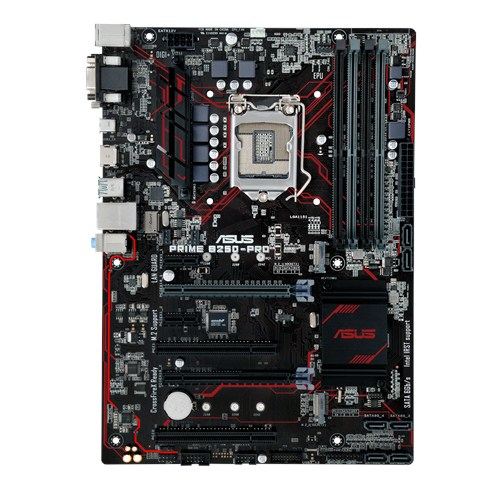

Intel B250, DDR4, 4xDIMM, Realtek RTL8111H, Ethernet, ATX
Reliable Stability and Compatibility
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
Superb Performance
DDR4 Support
With DDR4, you'll accelerate memory frequencies up to an incredible to 2400MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Optimized Cooling
Fan Xpert 2+
Advanced fan controls
With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan - Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!
- Dedicated water-pump header for best water-cooling efficiency.
- Auto-Tuning Mode: Scans fan parameters and all fans with a single click.
- Extreme Quite Mode: Reduces the CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.
All-round Energy Saving
Energy Efficient Design
EPU
With the Energy Processing Unit you'll enjoy system-wide power savings - with CPU-wattage reductions of up to 12W*! The EPU automatically optimizes power consumption and maximizes savings with Away mode: A setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers and reducing power to the graphics cards while you're away.
Ultrafast Transfer Speeds
Intel Optane Memory Ready
Intel® Optane™ Memory* is a revolutionary (non-volatile memory) technology supported by Prime 200-series motherboards. Intel Optane Memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
*Supports 7th Generation Intel® processors. Requires driver and BIOS update.
Easy PC DIY
Q-Shield
Easy and safe on fingers
Unlike other I/O shields with sharp edges, the exclusive Q-Shield is soft and pliable - so it's easy to avoid cuts.
One-Stop Controls
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes help you find your way, quickly and easily.
