Ports & interfaces
Serial ports quantity |
1 |
PS/2 ports quantity |
2 |
VGA (D-Sub) ports quantity |
1 |
Graphics
Maximum graphics adapter memory |
16 MB |
Memory
Supported UDIMM clock speeds |
1066, 1333, 1600 MHz |
Number of DIMM slots |
4 |
ECC |
Y |
Supported memory types |
DDR3-SDRAM |
Supported DIMM module capacities |
1GB, 2GB, 4GB, 8GB |
Maximum UDIMM memory |
32 GB |
Maximum internal memory |
32 GB |
Processor
Number of processors supported |
1 |
Intel Xeon series |
E3-1200 |
Expansion slots
PCI Express x16 slots |
1 |
PCI Express x8 slots |
1 |
PCI Express slots version |
2.0, 3.0 |
Other features
Graphics adapter family |
Aspeed |
Drive bays |
4 |
Motherboard |
P8B-E/4L |
Networking
Ethernet LAN data rates |
100, 1000 Mbit/s |
LAN controller |
Intel 82574L |
Networking features |
4 x Gigabyte LAN + 1 x Mgmt LAN |
Storage
Supported hard disk drive sizes |
3.5 " |
Supported storage drive interfaces |
Serial ATA II, Serial ATA III |
Hot-swap hard drive bays |
Y |
Number of hard drives supported |
4 |
Performance
PC health monitoring |
CPU, FAN, Temperature |
Operational conditions
Safety |
CE, EN55022, EN55024, TUV |
Additionally
Chipset |
Intel C204 |
Graphics |
AST2050 |
System bus data transfer rate |
5 GT/s |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
5 |

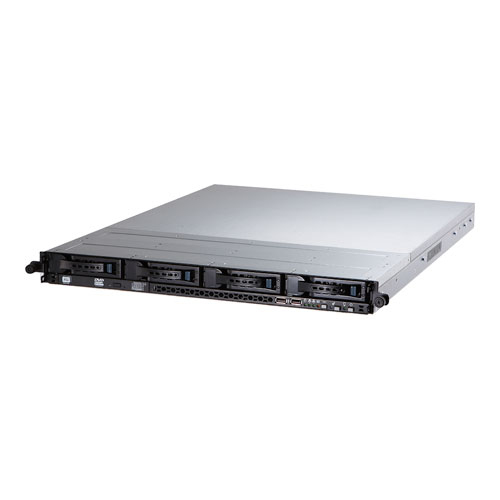

RS300-E7/PS4, 1U, Intel C204 P8B-E/4L, Intel LGA1155, 4 x DDR3 1600-800MHz, Aspeed AST2050 16MB, 1 x PCI-E x16, 2 x SATA 3Gb/s, 2 x SATA 6Gb/s, Quad LAN, 350W 80+
Highly Expandable 1U Server with Quad LAN.
As a UP 1U rack-mount server based on new generation Intel® Xeon® Sandy Bridge CPUs, the RS300-E7/PS4 provides immediate performance upscaling, extensive expandability and upgradability. It also features quad LAN networking and remote management, offering an ideal server for entry-level applications.
