Networking
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T |
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
| Networking features |
Gigabit Ethernet |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
| IPMI LAN (RJ-45) port |
Y |
| Serial ports quantity |
1 |
Storage
| Hot-swap hard drive bays |
Y |
| Controller interface type |
Intel ICH10R |
| Number of hard drives supported |
8 |
Operational conditions
| Safety |
CE, EN55022, EEC, TUV |
| Electromagnetic emissions |
FCC, CE, BSMI, CCC, C-TICK |
Memory
| Maximum RDIMM memory |
96 GB |
| Maximum UDIMM memory |
48 GB |
| Supported DIMM module capacities |
8GB, 4GB, 2GB, 1GB |
| Number of DIMM slots |
12 |
Performance
| Intelligent Platform Management Interface (IPMI) support |
Y |
Expansion slots
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
2 |
Graphics
| Maximum graphics adapter memory |
8 MB |
Processor
| Number of processors supported |
2 |
Additionally
| Graphics |
AST2050 |
| Chipset |
Intel 5520 |
| Ethernet LAN (RJ-45) ports quantity |
3 |

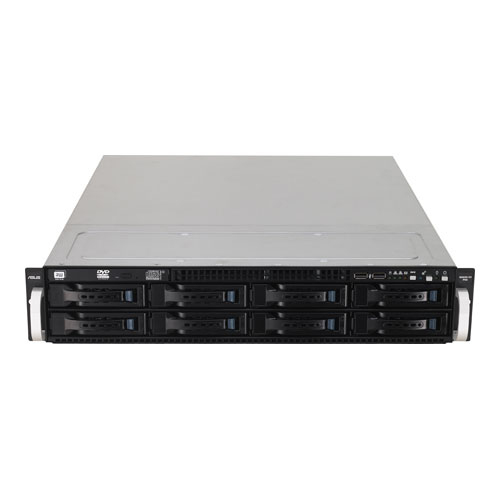

RS520-E6/ERS8, w/IPMI ASMB4-IKVM, 2U, 2 x LGA1366, Intel 5520 IOH, 12 x DIMM, 2 x PCI-E x8, 1 x PCI-E x4, 6 x SATA2 300MB/s, RAID 0/1/5/10, 8 x 3.5'' HDD H/s, Gigabit Ethernet, AST2050 8MB, 4 x USB 2.0, 2 x QSFP, 770W, 22kg, Silver
<b>2U Storage Server for Enterprise Applications</b>
RS520-E6/ERS8 is leading in computing power with support of the Intel® Xeon® 5500 series processor platform and total 12-DIMM memory capacity for computing-intensive applications. With 8 HDDs and versatile features, the RS520-E6/ERS8 is ideal for storage server use.
<b>Mass Storage Capacity & Complete RAID Solution</b>
RS520-E6/ERS8 has eight 3.5” hot-swap HDD bays to support SATA or SAS HDDs, meeting the demand of mass storage. The hot-swap design is reliable for 7x24 non-stop services. With ASUS optional PIKE upgrade kit, the server is able to provide flexible RAID choices.
<b>Flexible I/O Expansion Choices</b>
Catering to different demands of users, RS520-E6/ERS8 is equipped with three PCI-Express expansion slots, two of which support Full-Height/Full-Length PCI-E G2 card.
<b>High Availability for Mission Critical Enterprise applications</b>
The RS520-E6/ERS8 is built with hot-swap 1+1 redundant power supply to provide better reliability and eliminate the risk of downtime caused by power supply. In addition, the HDD bays are also hot-swappable for easy maintenance.
<b>Power-saving Solution</b>
With 80+ PFC high efficiency power supply, RS520-E6/ERS8 is able to reduce the power loss and power consumption, and save power bill for users, which can be a large deal for 7x24 hour non-stop servers. The EPU (Energy Processing Unit) engine will provide optimal and effective CPU power management.
<b>Virtualization Support</b>
The onboard vertical USB connector for VMware ESXi supports virtualization application in RS520-E6/ERS8. Virtualization not only improves the server’s utility rate and manageability, but also reduces TCO for customers.
<b>Real-time and Out-of-band Server Management</b>
The optional ASMB4-iKVM module offers real-time web-based management and remote system control (KVM-over-IP) with a single local computer.
