Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
NAT, SPI |
| System event log |
Y |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity |
13 channels |
Other features
| xDSL connection |
N |
| Frequency range |
2.4 - 5 GHz |
| Rack mounting |
N |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
1 |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
Port, IP, URL |
| Ethernet LAN (RJ-45) ports quantity |
4 |

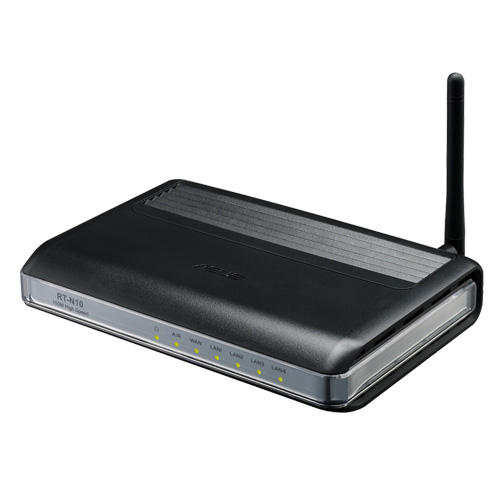

RT-N10 - EZQoS, 5 x RJ45, WAN, LAN, 2.4 - 2.5GHz, DHCP server, WAN DHCP client
- 150Mbps High Speed.
- CD-Free Installation: Simply launch the browser and automatically guide user to link to Internet.
- Manual-Free Management: Web-based network map help user easily manage the network.
- 2-Network-in-1: Provide extra network for prioritized bandwidth and access control
QIS(Quick Internet Setup)-3 Steps Internet Connection
Simply connect any Internet device to wireless router and QIS wizard will guide user to quickly link to Internet.
Network Map-Manual Free Management
Straight-forward design to help users to:
- Display the whole network status and clearly provide WAN/LAN status
- Securely connect to your wireless network and prevent intruders from using it
- Manage your network in minutes
Dr. Surf
Dr. Surf, your personal wireless doctor, can automatically offer real-time diagnostics. Auto-detect Connection Problems.
- If there is any problem for internet connection, Dr. Surf can auto-detect and provide possible solutions.
- Ex. Your cable is not connect with the router.
2-Network-in-1: Provide Extra Networks
The RT-N10 can provide two wireless networks which feature dynamic bandwidth allocation and access control. You can allow guests to access the Internet without sharing your password and private network devices by creating a virtual wireless router for guest. Keep the high bandwidth and secure private network for yourself.
EZQoS - Quality of Service
TWith ASUS unique EZQoS engine, users can easily allocate bandwidth according to their individual needs by simply clicking on the buttons, such as voice or gaming, and assign more or less bandwidth to streamline multiple network activities (FTP, Games, P2P) to work smoothly at the same time
