Power
| Power supply |
90 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
| Supported network protocols |
10/100/1000 Base T(X) |
| Network ready |
Y |
Storage
| Hard drive interface |
Serial ATA |
| RAID support |
N |
| Number of hard drives supported |
2 |
| Total storage capacity |
2000 GB |
| Number of hard drives installed |
2 |
| Hot-swap |
N |
| Hard drive size |
3.5 " |
Processor
| Processor frequency |
1.66 GHz |
| Processor front side bus |
667 MHz |
| Processor cache type |
L2 |
| Processor cache |
0.512 MB |
| Number of processors installed |
1 |
| Processor cores |
1 |
Memory
| Maximum internal memory |
2 GB |
| Memory clock speed |
800 MHz |
| Internal memory |
2 GB |
| Internal memory type |
DDR2-SDRAM |
Graphics
| Dynamic Video Memory Technology (DVMT) |
Y |
Design
| Chassis type |
Tower |
| Optical drive type |
N |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

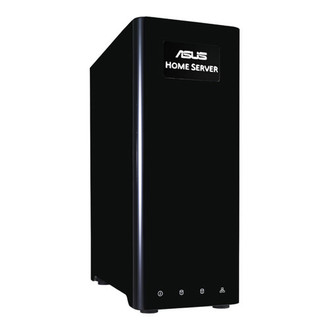

TS mini - Intel Atom N280 (512K Cache, 1.66 GHz, 667 MHz FSB), 2 GB DDR2 800, 2 x 1TB SATA 7200rpm, Gigabit Ethernet, 90W, Microsoft Windows Home Server
Store, Share, and Secure Your Digital Life
Backup and Restore
As a data management center, the TS mini will back up to 10 home computers external storage center daily and automatically. If home computers break down, users can easily rescue and restore entire computers or individual file or folder to a previous point in time. If there are multiple copies of the same data on different computers, the data would only be backed up once to maximize space efficiency.
Folder Duplication
When two hard drives are installed in TS mini, the share folder duplication function helps to prevent a single hard drive failure by automatically duplicates files in Share Folders across multiple hard drives, so when one hard drive is dead, the other still stays safe.
Remote Access
With the Remote Access function, you will receive a personalized Windows Live™ Internet address to remotely access files or upload files to your TS mini from any internet connected computer. You can also remotely streaming and share music and photos with friends and family and enjoy their music and videos from TS mini at home to any internet connected computer.
Media Streaming
TS mini extends your digital media experience by simultaneously streaming photos, music, video contents and other digital media contents to multiple computers, media receiver boxes, and games consoles such as Xbox360 or Playstation3.
WebStorage Service
Besides the hard drive storage capacity, TS mini also provides one year free 500GB online storage. You can backup and synchronize data from home server to ASUS Web Storage for redundant security. Moreover, you can start BT download task to your WebStorage even when you are away from home; and generate a personal website link to publish home server files on Facebook, twitter and so on.
Xtor Manager
With ASUS exclusive Xtor Manager, you can directly backup, synchronize and manage your files and folders between external USB and eSATA storage devices and TS mini. TS mini offers the greatest number of external interface, 6 USB ports and 2 eSATA ports for you to simply plug in a new hard drive to add space.
ASWM Management
ASWM, real-time system health monitoring tool, helps users to monitor online and system status of TS mini, including fans, temperature, disks, drives, network, memory and CPU. Once errors occur, the system will instantly send error report to pre-configured email.
Add-in Service
Beyond the pre-install functionality, users can extend the productivity and efficiency by customizing their TS mini through add in software available in the categories of entertainment streaming and sharing, home automation, power management, mobile phone solutions and home based business solution.
Energy Star 5.0 Certified
TS mini has passed the international standard Energy Star 5.0 certification for its ultra energy efficiency design. Under idle and active mode, it only consumes 24.5W and 27.9W perspective, which makes TS mini ideal for an “always on” home data center.
