Memory
| Supported memory clock speeds |
1333 MHz |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Other features
| Drive bays size |
4 " |
| Number of SATA connectors |
4 |
Ports & interfaces
| DVI port |
Y |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
Audio
| Audio system |
Realtek ALC887 |
Networking
| Networking features |
Realtek RTL8111E |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
V7-P8H61E - Intel H61 Express, Socket 1155, 2 x DIMM Dual Channel DDR3 1333 MHz, 4 x SATA II (3.0 Gb/s), Realtek RTL8111E, Realtek ALC887, Windows 7
V7-P8H61E Barebone is great for your basic entertainment requirement
- USB 3.0 Support
- EPU - Energy Efficiency All Around
- EFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
- AI Suite II - One-stop Access to Innovative ASUS Features
- MemOK! - Any Memory is A-OK!

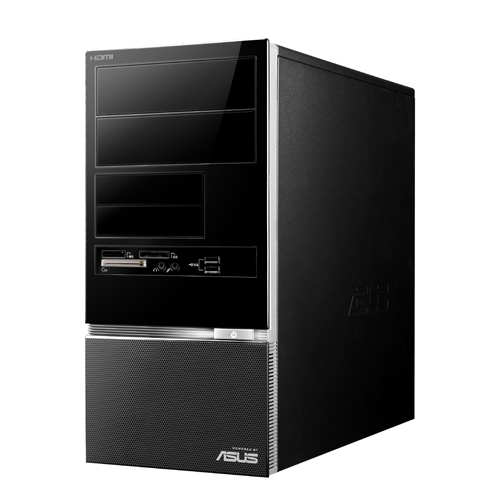

Black Glossy Front Panel
A mysterious dark glossy sheen will appeal to discerning high fashion aficionados. The polished panel combines with a simple symmetry to exude a sleek, stylish appearance that hides extreme performance on the inside.With an elegant power button that is flushed smoothly on the chassis and hidden I/O driver bays, a sleek continuous profile is maintained across the surface to match its unassuming computing power within.
CPU, Chipset, and Graphic FeaturesLGA1155 socket for Intel® Second Generation Core™ i7/ i5/ i3 Processors
V7-P8H61E supports the Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors are among the most powerful and energy efficient CPUs in the world.
Intel® H61 Express Chipset
The Intel® H61 Express Chipset is the latest single-chipset design to support the new 1155 socket 2nd generation Intel® Core™ i7 / i5 /i3 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H61 provides 4 SATA 3.0 Gb/s ports for faster data retrieval at double the bandwidth of current bus systems.
Memory FeaturesDual-Channel DDR3 1333 / 1066MHz support
V7-P8H61E supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
VGA
OutputHDMI
Support
Enjoy Full HD 1080p Multimedia Home-Theater Entertainment Immerse yourself into a cinematic experience by connecting to a HD monitor or TV with the HDMI port.
USB 3.0 Support
Experience ultra-fast data transfers at 4.8Gbps with USB 3.0 - the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.
