Networking
| Supports ISDN connection |
N |
Other features
| Maximum data transfer rate |
0.024 Gbit/s |
| Remote administration |
CLI, Telnet |
| Networking features |
Fast Ethernet |
Security
| NAT functionality |
Y |
| System event log |
Y |
| MAC address filtering |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
ANSI T1.413 issue 2 / ITU-T G.992.1, G992.2, G994.1 / RFC 1483/2684 / RFC 2364 / RFC 2516 / ITU-T 1.610 F4-F5 OAM / PAP/CHAP/MS-CHAP |
DSL features
| DSL specification |
RADSL (ANSI T1.413 Issue 2)/G.dmt ADSL over POTS G.992.1 Annex A)/G.lite (G.992.2)/G.hs (G.994.1)/ADSL2 G.dmt.bis (G.992.3)/ADSL2 G.lite.bis (G.992.4)/ADSL2+ (G.992.5) |
| xDSL connection type |
ADSL |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| USB ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Wireless technologies |
Wired |
| Filtering |
IP |
| Ethernet LAN (RJ-45) ports quantity |
1 |

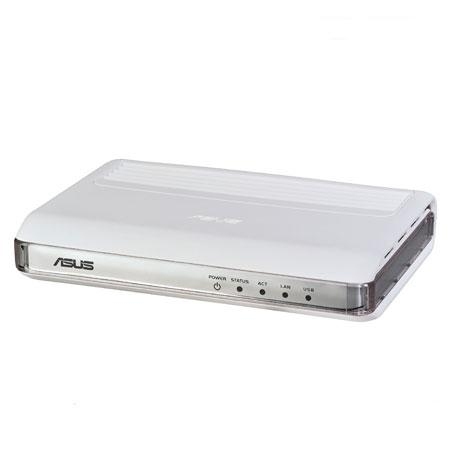

WL-AM602 - ADSL 2/2+ Ethernet / USB Combo Router
Integrate Router, Firewall and ADSL Modem in ONE device.
- Support both ADSL 2 and ADSL 2+, which is capable of delivering up to 24Mbps of downstream data rate, depending on the service providers and actual distance.
- Fully complies to ANSI T1.413 issue 2, ITU-T G.992.1(G.dmt) and G. 992.2(G.lite) ADSL standard.
Quick Setup:
- Powered by a well-defined ADSL connection database, it can automatically detect the first usable PVC and automatically detect PPPoE, PPPoA, and Bridge Protocol (with DHCP Server available).
QoS Bandwidth management
- Provide different priority to different applications, users, or to guarantee a certain level of performance to a data flow.
Enhanced Security: Protecting Your Network from Security Risks and Threats
- SPI (Stateful Packet Inspection) Firewall
- Packet filtering firewall
- NAT Firewall
- IP filter
- MAC filter
Ethernet and USB act simultaneously:
- Connect to the internet via USB port and Ethernet port at the same time.
