Other features
| Electromagnetic emissions |
ETS 300 328 and ETS 300 826; CE Mark; FCC Part 15C, Section 15.247 |
| Outdoor range |
310 m |
Power
| Input voltage |
100 - 240 V |
| Input frequency |
50/60 Hz |
Protocols
| Data link protocols |
Ethernet |
Additionally
| Indoors max range |
40 m |
| Output power |
12 ~ 15 dBm |
| Transfer rate (Mbps) |
54 Mbit/s |

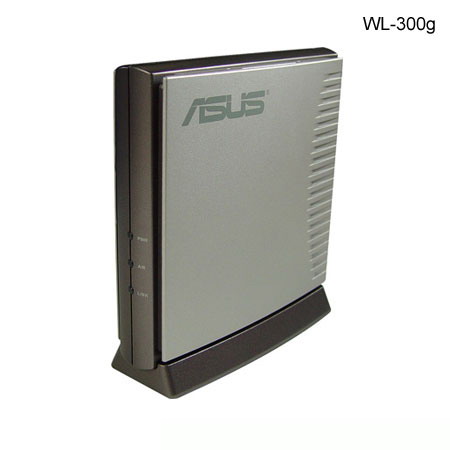

WLAN Access Point WL-300G, IEEE 802.11g/b, 54 Mbit, 40/128-bit WEP.
ASUS WL-300g is the most powerful wireless lan Access point. It is not only the bridge between the Ethernet and wireless networks, but also could provide Router function to support IP share and DHCP function.
- Data Rate - 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 802.11b:1, 2, 5.5, 11Mbps
- Modulation - 64QAM(54Mbps, 48Mbps), 16QAM(36Mbps, 24Mbps), QPSK(18Mbps, 12Mbps), BPSK(9Mbps, 6Mbps), CCK (11Mbps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
- RF Output Power - 12 ~ 15 dBm (at nominal temp. range)
