Design
| Motherboard form factor |
EEB |
| Component for |
Workstation |
Memory
| Supported memory clock speeds |
1333, 1600, 1866, 2133 MHz |
| Number of DIMM slots |
16 |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Quad |
| Supported RDIMM module capacity |
16GB, 32GB, 4GB, 8GB |
| Supported RDIMM clock speeds |
1333, 1600, 1866, 2133 MHz |
| Supported LRDIMM module capacity |
32GB, 64GB |
| Supported LRDIMM clock speeds |
1333, 1600, 1866, 2133 MHz |
| Maximum LRDIMM memory |
1024 GB |
| Maximum internal memory |
1024 GB |
Internal I/O
| USB 2.0 connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| Number of SATA III connectors |
10 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
9 |
| Number of EATX power connectors |
2 |
| Serial port headers |
1 |
Processor
| Number of processors supported |
2 |
| Intel Xeon series |
E5-2600 |
| Processor manufacturer |
Intel |
| Processor number of cores supported |
4, 6, 8, 10, 12, 16, 18 |
| Processor socket |
LGA 2011-v3 |
Graphics
| On-board graphics adapter memory |
32 MB |
| On-board graphics adapter model |
Aspeed AST2400 |
Expansion slots
| PCI Express x8 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
3 |
Back panel I/O ports
| IPMI LAN (RJ-45) port |
Y |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Networking
| LAN controller |
Intel I350AM2 |
| Ethernet interface type |
Gigabit Ethernet |
| Wi-Fi |
N |
Weight & dimensions
| Depth |
330.2 mm |
| Width |
305 mm |
Storage controllers
| RAID levels |
1, 5, 10 |
| RAID support |
Y |
| Hard drive interface |
Serial ATA III |
Operational conditions
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
20 - 90% |
Additionally
| Chipset |
Intel C612 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Operating temperature range (T-T) |
10 - 35 °C |

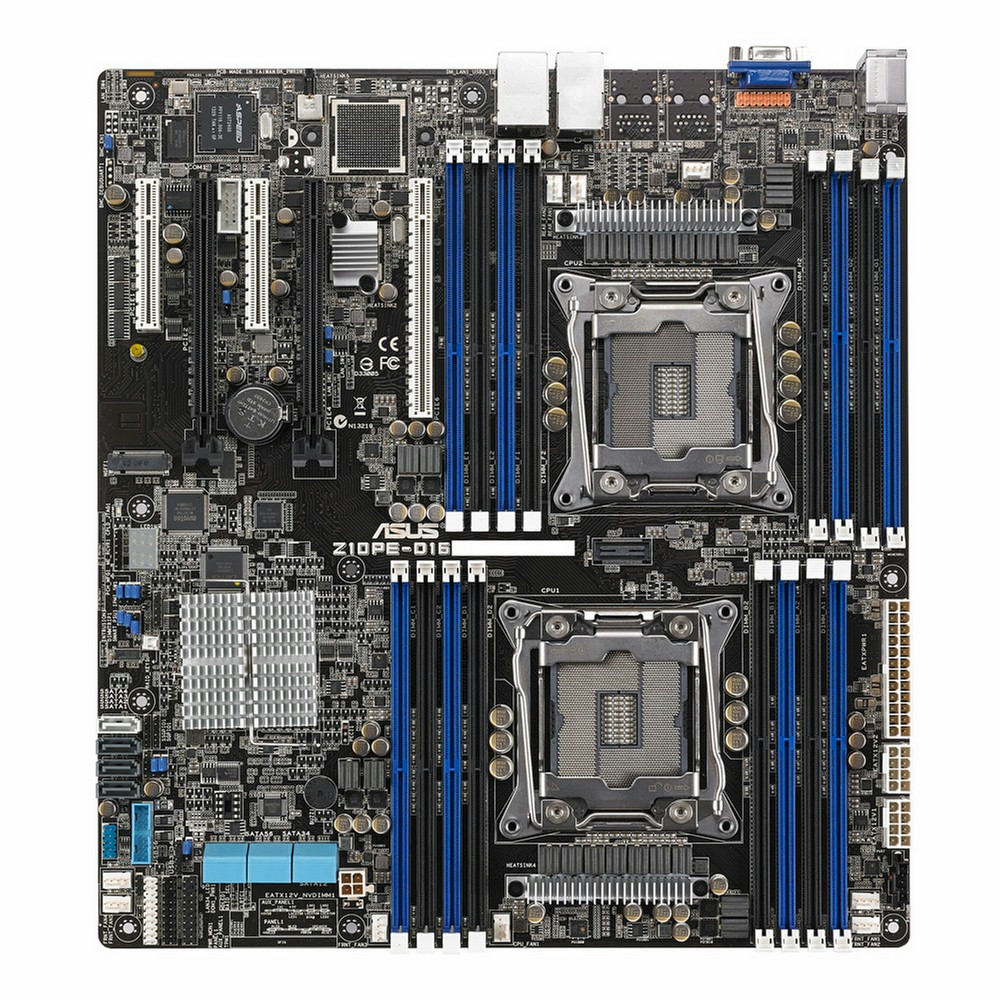

Intel C612 PCH, 2 x Socket R3 LGA 2011-3, 16 x DIMM, PCIe, SATA 6Gb/s, Gigabit LAN, PS/2, USB 3.0, USB 2.0, VGA, EEB
Powerful Expandability with Supreme Computing Power
ASUS Z10PE-D16 is perfectly built for expandability and extreme computing performance. ASUS Z10PE-D16 has mass storage capacity, along with an M.2 slot for added flexibility, and is engineered with premium components for premium efficiency. Together with optimized user experience and an intuitive remote-management solution, Z10PE-D16 is ideal for enterprise general purpose and being the computing/memcache node in the datacenter.
Mass storage capacity and additional OS storage
Z10PE-D16 is equipped with ten 6 Gb/s SATA ports, offering support for mass storage capacity. In an alternative configuration, Z10PE-D16 has nine 6 b/s SATA and an M.2 slot for a solid-state drive — ideal for an operating system boot drive! In this generation, ASUS has a whole new PIKE solution, standard PCI-E form factor for user to equip with multiple PIKE II cards on one motherboard which maximizes the expandability and utilizations. Just placing the PIKE II card, Z10PE-D16 can immediately enlarge the capacity, upgrade to 12G solution and improve the performance, making it the great upgrade option.
5 expansion slots
Z10PE-D16 has great expandability with five expansion ports: three PCI Express 3.0 x16 slots and two PCI Express 3.0 x8 slots. Additionally, Z10PE-D16 is equipped for a diverse range of applications including the usage of multiple host bus adapters (HBA).
Premium components for premium efficiency
ASUS Z10 server board series design the premium power solution with the hand-chosen components and provide premium efficiency which is up to 94%. The premium power solution consist 4 pillars to achieve the 94% premium efficiency: Beat Thermal Choke, Dr. MOS, 12K capacitor and Digi+ VRM. A special fin design of Beat-Thermal-Choke results in 3-5℃-lower choke temperatures and raise the stability, and translates into minimal-loss power delivery. The Dr. MOS is a proven stable circuit integrated MOSFET, which can optimize the switching performance and contribute the efficiency to the system. ASUS DIGI+ VRM design empowers users with superior flexibility and has the perfect precision to ensure optimized performance, extreme system stability. Moreover, ASUS is the world’s first server manufacturer to introduce 12K solid capacitors which are able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours@105°C). These 12K capacitors can also lower equivalent series resistance (ESR) and thus to increase efficiency and minimal heat generation.
Quick Initialization Guidance
The ASUS Z10 Series features quick initialization guidance which lets users realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The quick initialization guidance during the POST includes 2 phases. In phase 1 -- POST in seconds, the screen lightens in seconds to make users instantly access to system initializing status. In phase 2, device scanning information and 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for maintenance.
Complete remote server management
The ASMB8-iKVM (IPMI 2.0-compliant) enables remote update BIOS, standalone KVM/Java utility, video recording and BSOD capture. Based on out-of-band management, even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control, and power control, all through a colorful and informative graphical interface. Through ASUS remote management solution, users could save time and effort on server management and trouble-shooting.
