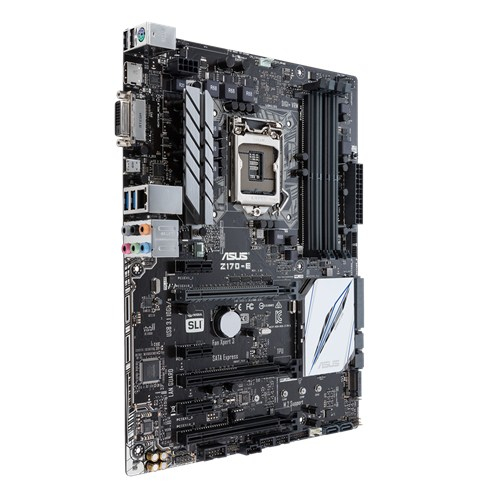

ASUS Z170-E Intel Z170 LGA1151 ATX motherboard

ASUS Z170-E Intel Z170 LGA1151 ATX motherboard

EAN: 4712900232264
MPN: 90MB0P60-M0EAY0
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor ATX
Motherboard chipset family Intel
Intel Extreme Memory Profile (XMP) Y
Audio system HD Audio
Component for PC

Memory

Supported memory clock speeds 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3400, 3466 MHz
Non-ECC Y
Unbuffered memory Y
Supported memory types DDR4-SDRAM
Memory channels Dual
Memory slots type DIMM
Maximum internal memory 64 GB

BIOS

BIOS memory size 16 MB
BIOS type UEFI AMI
Clear CMOS jumper Y
ACPI version 5.0

Internal I/O

USB 2.0 connectors 2
ATX Power connector (24-pin) Y
USB 3.0 (3.1 Gen 1) connectors 2
Number of SATA III connectors 6
CPU fan connector Y
Number of COM connectors 1
Number of chassis fan connectors 2
Front panel audio connector Y
Number of SATA Express connectors 1
Thunderbolt headers 1
Number of M.2 (M) slots 1

Back panel I/O ports

DVI-D ports quantity 1
USB 3.1 (3.1 Gen 2) Type-C ports quantity 1
PS/2 ports quantity 1
Microphone in Y
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2
HDMI ports quantity 1

Expansion slots

PCI Express x16 (Gen 3.x) slots 3
PCI Express x1 (Gen 3.x) slots 3

Processor

Intel Core i3/i5/i7 series i3-6xxx, i5-6xxx, i7-6xxx

Additionally

Chipset Intel Z170
Ethernet LAN connection Y
Ethernet LAN (RJ-45) ports quantity 1
Intel Z170, Socket 1151, 4 x DIMM, Max. 64GB, DDR4, UEFI AMI BIOS, ATX Overclock Your Way

One click overclock and cooling, done!
Get performance, efficiency, digital power, fan control and even networking and audio tuning tailored for you

5-Way Optimization at your disposal it takes just one click to tune complex settings — for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!

- Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound.
- Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
- Stutter is eliminated for smooth-running apps, even under heavy loading.
- Energy waste is reduced so you'll save money.

TPU

Unleash your PC's full performance with a simple two-phase onboard switch or the ASUS AI Suite 3 utility! The TurboV Processing Unit (TPU) offers precise voltage control and advanced monitoring for the CPU and the graphics card, enabling great freedom to adjust CPU frequencies and ratios for optimized performance and to exploit the potential out of your graphics card*.

OC Design- ASUS PRO Clock technology

A dedicated base-clock (BCLK) generator designed for 6th-generation Intel® processors that allows overclocked base clock frequencies up to or beyond 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU), to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.

Advantages of ASUS Pro Clock

- Reduced boot up time
- Lower jitter under extreme conditions for higher overclocks
- Increased stability under heavy overclocking

DDR4 overclocking strength in numbers

Second-generation ASUS T-Topology enables DDR4 memory overclocking to reach new heights: over DDR4-3466MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, our second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.

Ultrafast Transfer Speed

Fast storage speed with SATA Express

Current SSDs devour up to 550MB/s bandwidth, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard — and ensures that you and your system won't get left behind.

Speed up with onboard M.2 up to 32Gbit/s

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Ultimate-speed 10Gbit/s with USB 3.1 onboard

With one USB 3.1 reversible USB 3.1 Type-C for the very fastest USB connections, you'll experience data-transfer speeds of up to 10Gbit/s — or twice as fast USB 3.0. USB 3.1 is completely backward-compatible with your existing USB devices, and you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

EZ Flash 3

Update the latest BIOS via the internet, and from within the BIOS.

S.M.A.R.T

Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.

EZ Tuning Wizard– OC and RAID

Select your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups!

My Favorites

Quickly find tuning options and add preferred tools to the list.

EZ Mode

- Intuitive Graphical Fan Control:

Fine-tune individual fans simply by dragging a curve with the mouse.

- EZ XMP:

Improve your DRAM performance with a click.
- SATA Information:

View SATA port details for easy device recognition.

- Fast Clock Adjustment:

Use mouse controls to change the time and date.

Advanced Mode

- GPU POST:

Automatically detect selected ASUS graphics cards to view detailed information.

- Secure Erase:

Restore your SSDs to factory-fresh condition.

- Last Modified Log:

Track last change and save preferred profiles onto a USB drive.

- SATA Port Renaming:

Rename SATA ports for easy identification.

Game with Confidence

Flawless audio that
makes you part of the game
Crystal Sound 2

Noise Isolation
Audio shielding

Ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Separate layer for left and right tracks
Ensures both channels deliver consistent, equal quality.

Audio Enjoyment

Premium Japanese-made audio capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

De-pop circuit

Reduces start-up popping noise to all audio outputs

Intel Ethernet
More throughput, less CPU usage and great gaming experiences

Z170-E features the very latest Intel® Ethernet for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay!

Turbo LAN
Network-optimization software for customizable packet prioritization

Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and intuitive user interface. It allows you to lower lag with no expert knowledge – by up to 1.45X! If you're a tweaker, use Advanced Mode for hardcore controls.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Seamless Entertainment

Your digital PC hub for sharing and home theater
Media Streamer

Enjoy your PC's multimedia content —anywhere! Pipe music from your PC or cloud storage, including ASUS WebStorage, Dropbox, Google Drive and OneDrive while sipping coffee in a café, or sit back with friends and stream a favorite movie to a smart TV. With ASUS Media Streamer, your entertainment goes wherever you go.

Watch your smart device content on the big screen
HyStream

With HyStream you'll enjoy the ease and freedom of streaming HD content from your supported* Apple iOS smartphone or tablet straight to your bigger screen!

All-in-one control between your PC and smart device
Mobo Connect

Work with your PC and smart device at the same time through a single keyboard-and-mouse set. A simple hot key lets you switch between your PC and smart device quickly. It even charges your mobile device at the same time.

Extreme Stability

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

Easy PC DIY
You will love DIY!

We understand how you use your PC. From assembly, system setting and monitoring, and to firmware and hardware updates — we're all about making your life easier. That's why we never stop developing new and exciting DIY opportunities to make PC DIY easy, fun and free from hassle!

CPU Installation Kit
Three-step simplicity and safety

One mistake during fitting could damage your processor or socket — but not with the ASUS CPU Installation Kit. Just pop your CPU in the special tool, insert the tool directly into the CPU socket, close the latches positions and you're good to go!

PC Cleaner
Work faster, start quicker and smoother

Your computer is running slow? PC Cleaner cleans up unused and unwanted files and programs that take up spaces in your storage drives, eliminating the clog It also accelerates PC start-up with a click!

Q-DIMM
Easy memory removal

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Q-Slot
Effortless PCI Express component removal

The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-LED
Easy PC diagnostics

Q-LED indicates problems with the CPU, memory, graphics card or boot device, so you can quickly diagnose and remedy any issues — and wave goodbye to endless frustrations!

Intel CPU and chipset features

Intel® Z170 Chipset

Intel® Z170 is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z170 provides a maximum of ten USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed support for faster data retrieval. Intel Z170 Express also supports integrated-graphics (iGPU) functions, so you'll enjoy the very latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
