Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Trusted Platform Module (TPM) |
Y |
| Audio system |
Realtek ALC1150 |
| Component for |
PC |
| Energy Star certified |
N |
Memory
| Supported memory clock speeds |
1333, 1600, 1800, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 3000 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
Internal I/O
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
8 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
4 |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
11 |
| Maximum graphics adapter memory |
1024 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| Number of displays supported |
3 |
Other features
| Number of processors supported |
1 |
| Number of DIMM slots |
4 |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
6 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
4 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
2 |
Processor special features
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Additionally
| Chipset |
Intel Z87 |
| Количество слотов PCI Express |
7 |
| System bus data transfer rate |
6 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

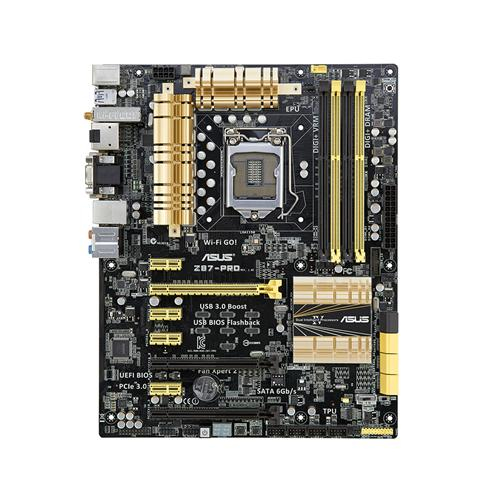

Z87-PRO, LGA 1150, 4 x DIMM, 32GB DDR3, Wi-Fi, Bluetooth 4.0, USB 2.0 / 3.0, 8 x SATA, HDMI, DVI-D, VGA, DisplayPort, ATX
Wi-Fi GO!
Connect your life – The perfect fusion of desktop, smartphones and pads
ASUS Wi-Fi GO! makes enjoying home entertainment and remotely controlling your PC easier than ever! It is the first integration of Wi-Fi hardware and a host of useful connectivity functions in a single intuitive app anyone can make the most of. It’s a one-stop utility that links your desktop with smart devices, which can be used to remotely control your PC for a truly connected lifestyle.
Wi-Fi hotspot setup
Quickly gets an access point via 802.11n Wi-Fi. Bundled with a 2.4GHz/5GHz dual-band 2T2R antenna so you can build your network without an extra router!
New UEFI BIOS – friendlier and more Intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
USB 3.0 Boost (UASP Support)
170% faster transfer speeds than traditional USB 3.0
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) USB 3.0 in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.
- World’s 1st USB 3.0 UASP support – instantly 170% faster.
- Complete USB 3.0 solution – performance boost under Turbo Mode or UASP Mode for most USB devices.
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
DirectKey
Dedicated direct BIOS access button
Designed for those requiring frequent BIOS access, users can easily enter the BIOS when the PC is on standby power with a simple press of a button. It saves you time during boot-up as you don’t have to repeatedly press the DEL key. Convenience and ease at their best!
ASUS 5X Protection
All-round protection provides the best quality, reliability, and durability
ASUS motherboards guard your PC with 5X Protection. We use quality components like DIGI+ VRM digital power design for precise CPU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.
4K Ultra HD ready
Discover future visual experiences
Following up on popular 1080p full HD, 4K Ultra HD is the next big thing, and you’re ready for the upgrade thanks to integrated graphics that natively support up to 4096 x 2160 via HDMI or DisplayPort. That’s four times the pixel count of 1080p (1920 x 1080), offering incredible visual clarity, detail, and realism.
Intel LGA1150 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Ready
This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world.
Intel Z87 Express Chipset
The Intel Z87 Express Chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z87 provides a maximum 6 USB 3.0 ports and 6 SATA 6Gb/s ports for faster data retrieval. Moreover, the Intel Z87 Express Chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.
RoHS
GreenASUS
Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.
