Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1333, 1600, 1866, 2000, 2133, 2200, 2250, 2400, 2600, 2666, 2800, 2933, 3000, 3100, 3200 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Processor
| Maximum number of SMP processors |
1 |
| Intel Core i3/i5/i7 series |
i3-4xxx, i5-4xxx, i7-4xxx |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
3 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x1 (Gen 2.x) slots |
3 |
| PCI Express x16 (Gen 3.x) slots |
2 |
Additionally
| Chipset |
Intel Z97 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

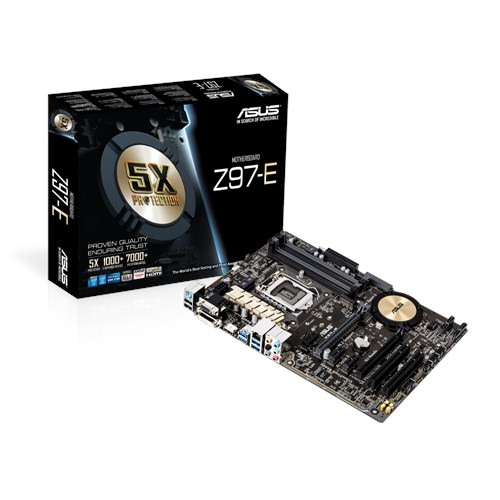

ASUS Z97-E. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, Supported memory clock speeds: 1333,1600,1866,2000,2133,2200,2250,2400,2600,2666,2800,2933,3000,3100,3200 MHz. Processor family: Intel, Compatible processor series: Celeron,Core i3,Core i5,Core i7,Pentium, Processor socket: LGA 1150 (Socket H3). Supported storage drive interfaces: Serial ATA III. LAN controller: Intel I218V, Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard chipset family: Intel, Motherboard chipset: Intel Z97
