Features
| Type |
Transmitter |
| Maximum transfer distance |
100 m |
| Maximum digital resolution |
1920 x 1200 pixels |
| Cable types supported |
Cat5e |
Receiver
| Receiver local video port type |
VGA |
| Receiver local keyboard/mouse port type |
USB |
Weight & dimensions
| Transmitter width |
57.4 mm |
| Transmitter height |
24 mm |
| Transmitter depth |
91 mm |
| Receiver width |
57.4 mm |
| Receiver depth |
91 mm |
| Receiver height |
24 mm |
| Transmitter weight |
170 g |
| Receiver weight |
170 g |
Transmitter
| Transmitter local keyboard/mouse port type |
USB |
Power
| Power consumption (transmitter) (max) |
0.17 W |
| Power consumption (receiver) (max) |
1.25 W |
Additionally
| Wireless technologies |
Wired |
USB Type A, USB Type B, HDB-15, RJ-45, DC Jack, LED, 1920 x 1200, 9.1 x 5.74 x 2.4cm, 0.17 kg

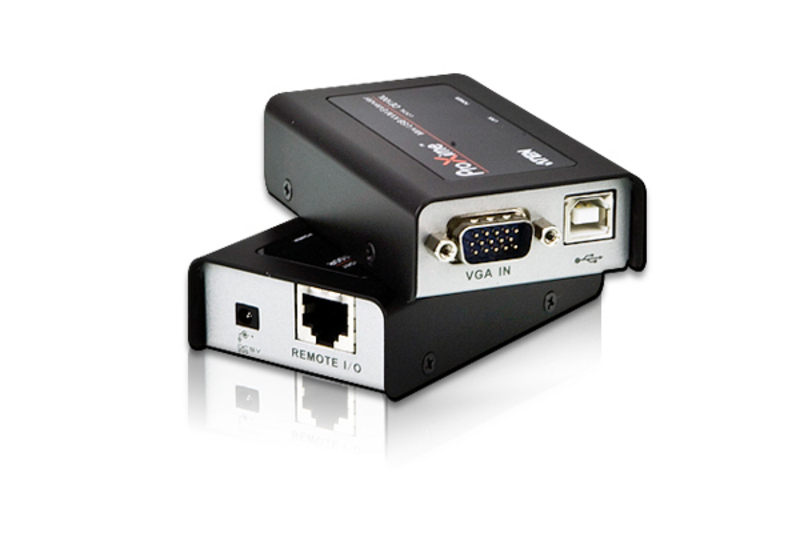

<b>MINI USB KVM Extender</b>
CE100 Zoom In CE100 CE100 CE100
The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
