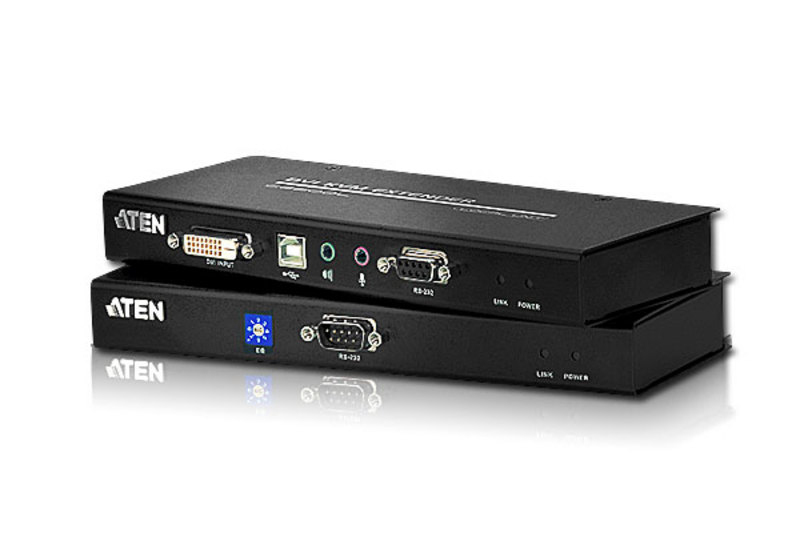

Aten CE602 Black console extender

USB DVI Dual Link KVM Extender with Audio and RS-232 (60m) Features

- Local and Remote Units connect at distances up to 60 m using Cat 5e cable
- Allows access to a computer or KVM installation from a remote console (up to 60 m)
- Supports DVI-D interface and allows transmission of DVI duallink signals
- Features ATEN technology that allows A/V transmission over one cat 5e cable
- The 2nd Cat 5e cable is used for HDCP, RS-232, microphone and dual link signals
- Manual compensation control to adjust signal strength in order to compensate for distance
- RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
- Audio Enabled – supports stereo speakers and microphone
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Supports Wide Screen formats
- Superior video quality of up to 2560 x 1600 @ 60 Hz (DVI Dual Link) at 40 m; 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
- Hot pluggable
- Rack mountable
- Easy to install – no software required – connecting cables to the devices is all it takes
- Firmware upgrade

Package Contents

- 1x CE602L DVI KVM Extender (Local Unit)
- 1x CE602R DVI KVM Extender (Remote Unit)
- 1x 2L-7D02UD 1.8 m USB DVI-D Dual Link KVM Cable Set
- 2x 0AD6-1605-24EG Power Adapters
- 1x Mounting Kit
- 1x User Instructions
