Features
| Cable types supported |
Cat5e, Cat6a, Cat6 |
| Firmware upgradeable |
Y |
| Type |
Transmitter & Receiver |
| Maximum transfer distance |
100 m |
Receiver
| Receiver local video port type |
DVI-D |
Weight & dimensions
| Receiver depth |
122.8 mm |
| Receiver height |
28.7 mm |
| Transmitter width |
182 mm |
| Transmitter height |
28.7 mm |
| Transmitter depth |
122.8 mm |
| Receiver weight |
640 g |
| Receiver width |
182 mm |
| Transmitter weight |
630 g |
Transmitter
| Transmitter local video port type |
DVI-D |
| Transmitter local video port |
Y |
Power
| Power consumption (transmitter) (max) |
3 W |
| Power consumption (receiver) (max) |
5.6 W |
Additionally
| AC adapter bundled |
Y |
| Wireless technologies |
Wired |
local & remote units, DVI-D, USB type B, USB type A, 2 x DB-9, RJ-45, 3 - 5.6 W, 5 V DC, 18.2 x 12.28 x 2.87 cm

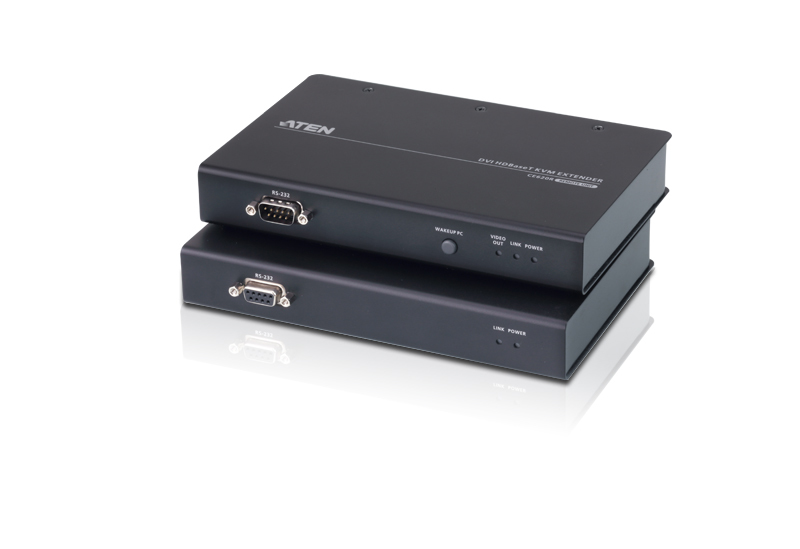

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
<b>HDBaseT™ 2.0 connectivity technology</b>
- Extends video, audio, USB and RS-232 signals via a single Ethernet cable
- EDID Buffer for smooth power-up and the highest quality display
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
<b>Long distance superior video quality</b>
- HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
- HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
- Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap
- Integrated USB 2.0 ports — ensuring fast transmission speeds for peripherals
- Supports 2-channel PCM digital audio — ensuring highquality audio transmissions
- Supports PC Wakeup function via pushbutton or hotkey
- Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)
