Ports & interfaces
| Number of microphone inputs |
4 |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Video port type |
DVI-I |
Additionally
| Wireless technologies |
Wired |

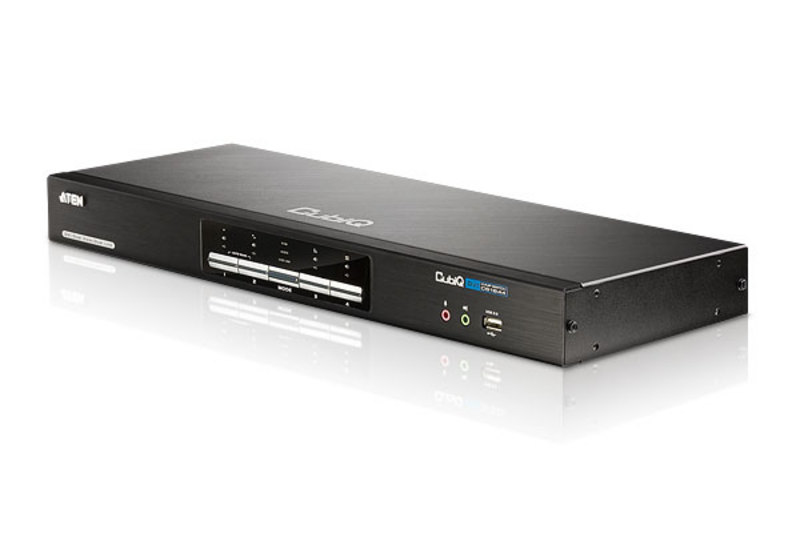

4-Port USB DVI Dual-View KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
Features
- 4-port DVI Dual View KVMP switch with USB 2.0 support and 2.1 channel surround sound audio
- One dual-screen USB console controls four dual-screen computers and two additional USB devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Full bass response provides a rich experience for 2.1 channel surround sound systems
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with the DVI specifications; also HDCP compliant
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons and hotkeys
- Multiplatform support – Windows, Linux, Mac, Sun
- Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
- Video DynaSync™ - stores the console monitors EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
Package Contents
- 1x CS1644 USB 2.0 DVI Dual View KVMP™ Switch
- 4x 2L-7D02UD USB DVI-D Dual Link KVM Cable
- 4x 2L-7D02U USB DVI-D Single Link KVM Cable
- 4x 2L-7D02I DVI-I KVM Cable
- 1x LIN5-26WI-W11G (DVI-DL)
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
