Other features
| Ports quantity |
8 |
| I/O ports |
1 x SPHD-18 M\n8 x SPHD-17 F\n1 x DB-25 M\n1 x DC\n1 x RJ-45 F\n1 x RJ-11\n1 x USB A |
| Compatible operating systems |
Windows, Mac OS X, Linux, Sun |
Packaging content
| Cables included |
KVM |
| Manual |
Y |
Performance
| Scan interval |
255 s |
| Security algorithms |
802.1x RADIUS, SSL/TLS |
| Number of users |
32 user(s) |
Power
| Power consumption (typical) |
9.5 W |
Ports & interfaces
| Number of computers controlled |
8 |
| USB 2.0 ports quantity |
1 |
| DC-in jack |
Y |
Weight & dimensions
| Depth |
433 mm |
| Width |
160 mm |
| Weight |
2810 g |
| Height |
44 mm |
Video
| Maximum resolution |
2048 x 1536 pixels |
Operational conditions
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
Design
| LED indicators |
Y |
| Material |
Metal |
Additionally
| Colour of product |
Black |
| Colour depth |
24 bit |
| Wireless technologies |
Wired |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 50 °C |

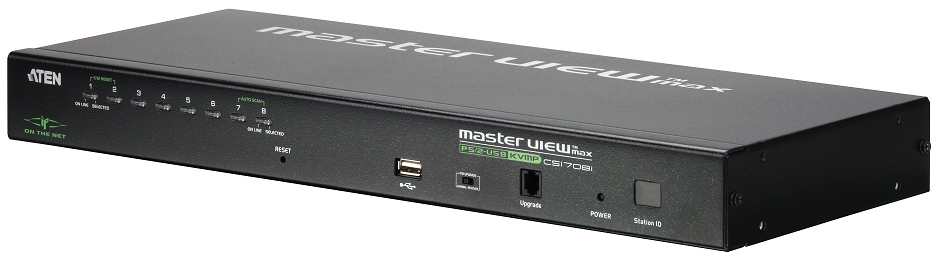

8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
Features
- Management
- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Up to 32 concurrent logins
- Multilanguage web UI support featuring a tree-structured local and remote OSD
- Adjustable video quality for flexible adaptation to diverse network environments
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).
- Firmware upgradable
- Backup and restore configuration and user account settings
- Event logging
- Enable/disable browser access
- IPv6 capable
Package Content
1x CS1708i KVM Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD6-1605-24EG Power Adapter
1x Software CD
1x User Instructions
