Ports & interfaces
Video port type |
VGA |
Number of computers controlled |
8 |
Keyboard port type |
PS/2 |
Mouse port type |
PS/2 |
DC-in jack |
Y |
Power
Power consumption (typical) |
1.08 W |
Weight & dimensions
Depth |
170 mm |
Width |
450 mm |
Weight |
2850 g |
Height |
67 mm |
Video
Maximum resolution |
1920 x 1440 pixels |
Operational conditions
Storage temperature (T-T) |
-20 - 60 °C |
Design
LED indicators |
Y |
Material |
Metal |
Other features
Compatible operating systems |
Windows 2000, XP, Vista;\nLinux;\nFreeBSD |
Additionally
Colour of product |
Black |
AC adapter bundled |
Y |
Operating temperature range (T-T) |
0 - 50 °C |

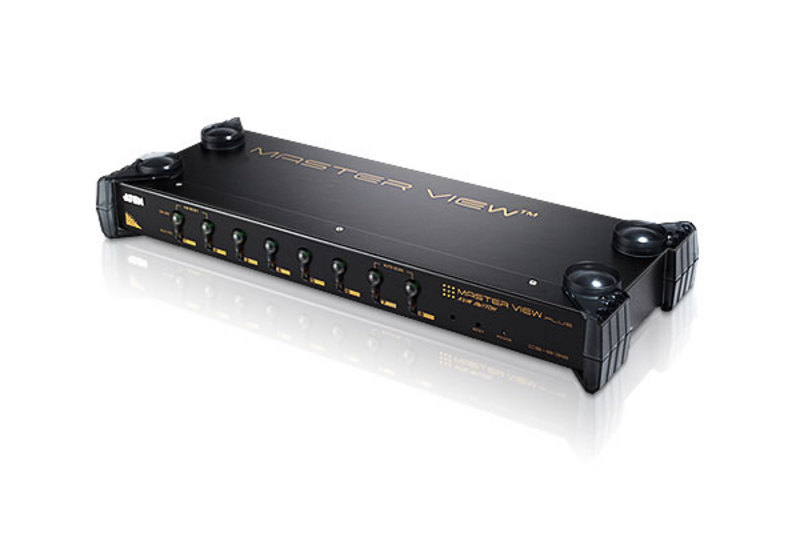

8-Port USB - PS/2 VGA KVM Switch
Features
- One PS/2 console controls 8 computers.
- Cascadable up to 3 levels - provides up to 512 computers.
- Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).
- Keyboard and mouse emulation for error free booting.
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
- OSD automatically adjusts to resolution changes.
- Auto Scan function to monitor computer operation.
- Superior video quality: up to 1920 x 1440; DDC2B.
- Available in silver and black.
- Special design for easy stacking.
- Rack mountable in 19" (1U) system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
Package Contents
- 1x 8-Port PS/2 KVM Switch
- 1x 0AD6-1909-03EG Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
