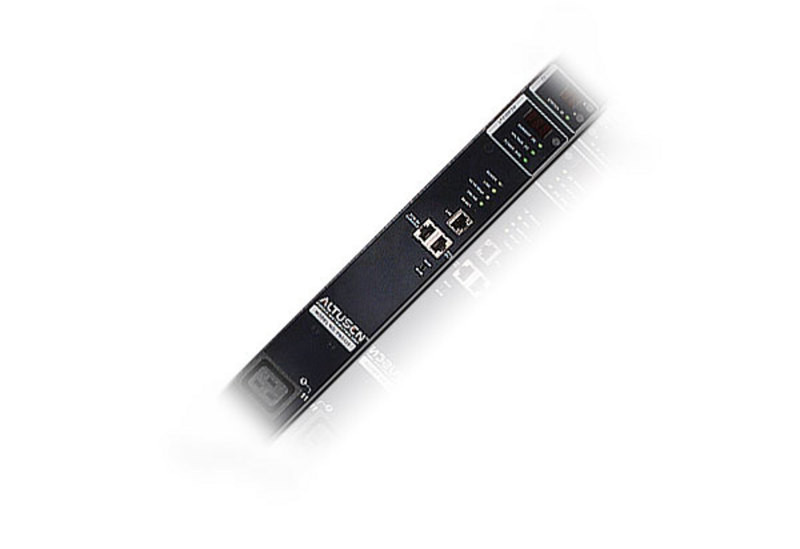

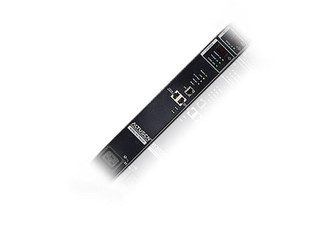

Aten PN5320 20AC outlet(s) 0U Black power distribution unit (PDU)

20-Port Intelligent 0U Power Distribution Unit (PDU), Metered (17 x C13, 3 x C19) Features

Power Distribution
- Maximum Amps/Outlet: NEMA 30A/ 20 outlets; IEC 32A/ 20 outlets
- Space saving 0U rack mount design
- IEC or NEMA outlet models

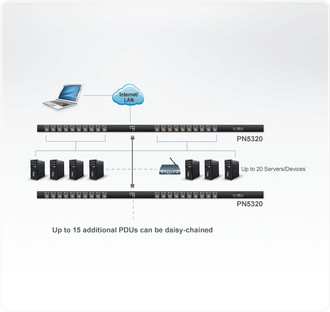

- Daisy chain up to 15 additional stations for up to 320 outlets
- 2 x 7 segment front panel LED shows Station and Outlet ID
- 3 x 7 segment LED shows current, voltage or power dissipation at PDU level
- Overcurrent protection and recovery for the PDU
- Remote users can monitor outlet status via web pages on their browsers
- Safe shutdown support
- Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices" circuit breaker

Remote Access
- Remote power control via TCP/IP and a built in 10/100 Mbps Ethernet port
- Network Interfaces: TCP/IP, PPP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, ARP, NTP, DNS, Telnet, 10Base-T/100Base-TX, auto sense, Ping
- IPv6 support

Operation
- Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets and outlet groups
- Outlet group support at the PDU and Daisy-chain levels – the same action can be performed on a specified group of outlets at the same time
- Supports redundant power management via daisy chaining and outlet groups
- On/Off scheduling for individual outlets and outlet groups. Power management tasks can be scheduled on a daily, weekly, monthly, or user-specified times basis
- Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
- Power-on sequencing - users can set the power on sequence and delay time for each outlet to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Telnet and SSH access for text menu configuration and outlet level switching / monitoring
- Local console access support
- Java GUI AP program provided for non-browser connectivity
- RTC support to keep the timer running during times of no power.
- Up to 64 user accounts - up to 32 concurrent logins

Management
- Power status measurement at PDU level
- LED indicators for current; voltage; power dissipation at the PDU level
- Current; voltage; power dissipation; and energy consumption displayed in a browsed-based UI for monitoring at PDU and daisy-chain levels
- Current, voltage, power dissipation, energy consumption threshold level setting
- Alert threshold notification for selected events (On, Off, Recycle, Failure, etc.), via audio alarm and blinking LEDs (locally), SMTP, and SNMP trap notification
- Naming support for outlets and outlet groups
- User outlet access assignment on an outlet-by-outlet basis.
- Windows-based Log Server; event logging, and syslog support
- Integration with ALTUSEN CC2000 Management software and KVM devices
- Supports Management Information Base (MIB) files for SNMP
- API for 3rd party software centralized control integration
- Auto-Ping pings a device to determine its status, if the ping test fails after a set amount of time- it automatically takes an action assigned
- Upgradeable firmware – daisy chained stations receive the upgrade via the daisy chain bus
- Multi-language support: English, German, Traditional Chinese, Simplified Chinese, Japanese, Korean, Russian

Security
- Three-level password security
- IP/MAC filtering
- Secure 128-bit SSL encryption
- Remote authentication support: RADIUS, TACACS+, LDAP, LDAPS and Active Directory

Package Contents

- 3x Serial Adapters
• 1x SA0149 (RJ45F to DB9F)
• 1x SA0150 (RJ45F to DB9M)
• 1x SA0151 (RJ45F to DB9F)
- 2x Rack Mount Kits
- 1x User Instructions
- 1x Software CD
