Technical details
| Impedance |
100 Ω |
| Resolution |
1920 x 1200 pixels |
| Bandwidth |
10.2 Gbit/s |
| Type |
AV transmitter |
| Cable types supported |
Cat5e, Cat6a, Cat6 |
| Frequency |
340 MHz |
| Number of connectors |
1 |
| Maximum transfer distance |
70 m |
| HDCP |
Y |
| Power |
1.85 W |
Ports & interfaces
| DVI input ports |
1 |
| DC-in jack |
Y |
Weight & dimensions
| Transmitter weight |
250 g |
| Transmitter dimensions (WxDxH) |
87 x 103 x 30 mm |
Additionally
| Ethernet LAN connection |
Y |
DVI HDBaseT-Lite Transmitter (HDBaseT Class B), 10.2 Gbps, 340 MHz, 0.25 kg

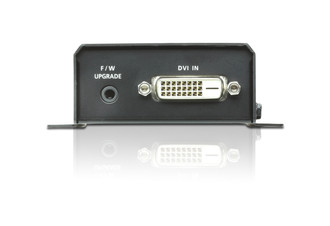

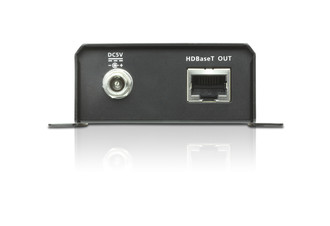

The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
<b>Features:</b>
- HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
