Packaging content
| Quick start guide |
Y |
| Handheld remote control |
Y |
Technical details
| Maximum operating distance |
20 m |
| External power adapter |
Y |
| Video port type |
HDMI |
Additionally
| AC adapter bundled |
Y |
| RS-232 port |
1 |

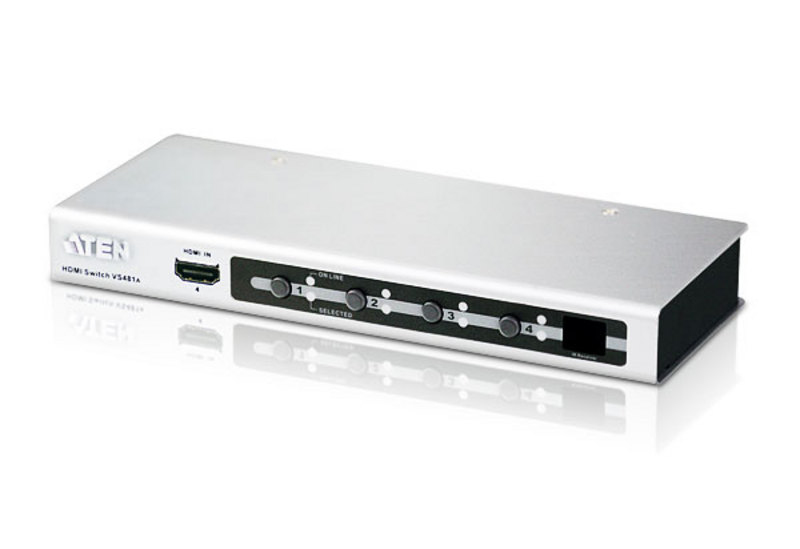

4-Port HDMI Audio/Video Switch with IR Remote Control
<b>Features</b>
- Allows up to four HDMI A/V source to be connected to one HDMI display
- Toggle between A/V sources using remote control or front panel pushbuttons
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200) and WUXGA(1920x1200)
- HDMI (3D, Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long distance transmission - up to 20m (24 AWG)
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Plug-and-play - no software installation required
- DDC Compatible
- HDCP 1.1 compliant
- Signaling rates up to 2.25 Gbits in support of 1080p display
- All-metal casing
- LED indication of video source devices
- Easy and affordable way to add four HDMI inputs to your home theater system
<b>Package Contents</b>
- 1x HDMI Switch
- 1x Standard HDMI cable (1.8 m)
- 1x IR Remote Control Unit
- 1x Power Adapter
- 1x User Instructions
