Security
| Firewall security |
NAT, PAP, CHAP, SOHO |
| VPN support |
IPSec, PPTP |
Networking
| Media access protocol |
CSMA/CA, ACK |
| Receiver sensitivity |
802.11b (1Mbps): -90dBm @8%\n802.11b (6Mbps): -88dBm @8%\n802.11b (11Mbps): -85dBm @8%\n802.11g (54Mbps): -68dBm @10%\n802.11n (150Mbps): -68dBm @10% |
| Management protocols |
SNMP MIB, GUI |
Other features
| Networking type |
Fast Ethernet |
| xDSL connection |
Y |
| Bandwidth |
2.4 GHz |
| Rack mounting |
N |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
RIP1, RIP2, IP, ICMP, TCP, UDP, IGMP |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Maximum indoor range |
35 m |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
BPSK, CCK, OFDM, QPSK |
| Maximum outdoor range |
100 m |
| Channels quantity |
13 |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
2.2 dBi |
| Transmit power |
16 - 16 dBmW |
| Antennas quantity |
1 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

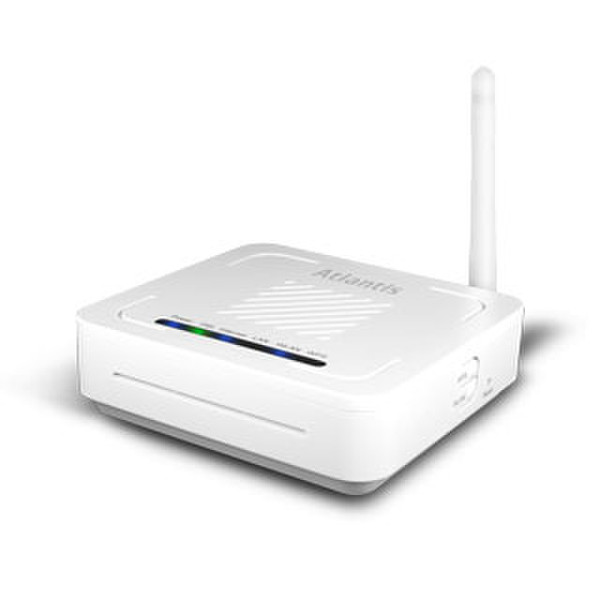

Atlantis Land 111 WN+. Top Wi-Fi standard: IEEE 802.11n, Wi-Fi standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Modulation: BPSK, CCK, OFDM, QPSK. Ethernet LAN interface type: Fast Ethernet, Cabling technology: 10/100Base-T(X). Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, Receiver sensitivity: 802.11b (1Mbps): -90dBm @8% 802.11b (6Mbps): -88dBm @8% 802.11b (11Mbps): -85dBm @8%, Management protocols: SNMP MIB, GUI. Supported network protocols: RIP1, RIP2, IP, ICMP, TCP, UDP, IGMP. Antenna type: External, Transmit power: 16 - 16 dBmW
