Security
| Firewall security |
NAT, PAP, CHAP |
| VPN support |
IPSec, PPTP |
| Filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
| Receiver sensitivity |
802.11b (1Mbps): -90dBm @8%\n802.11b (6Mbps): -88dBm @8%\n802.11b (11Mbps): -85dBm @8%\n802.11g (54Mbps): -68dBm @10%\n802.11n (150Mbps): -68dBm @10% |
| Management protocols |
IGMP, SNMP |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
IP, IPV6, ICMP, TCP, UDP, CSMA/CA, PPPoA, PPPoE, RFC, Web GUI, Telnet, DNS, SNTP |
DSL features
| DSL specification |
G.992.1, G.992.2, G.994.1, G.992.3 |
| ADSL2+ |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
BPSK, DSSS, OFDM, QPSK |
| Channels quantity |
13 |
Other features
| xDSL connection |
Y |
| Bandwidth |
2.4 GHz |
| Outdoor range |
100m |
| Networking features |
Fast Ethernet |
| Input voltage |
12 V |
| Input current |
1 A |
| Frequency range |
2.400 - 2.472 GHz |
Antenna
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
1 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Indoors max range |
35m |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

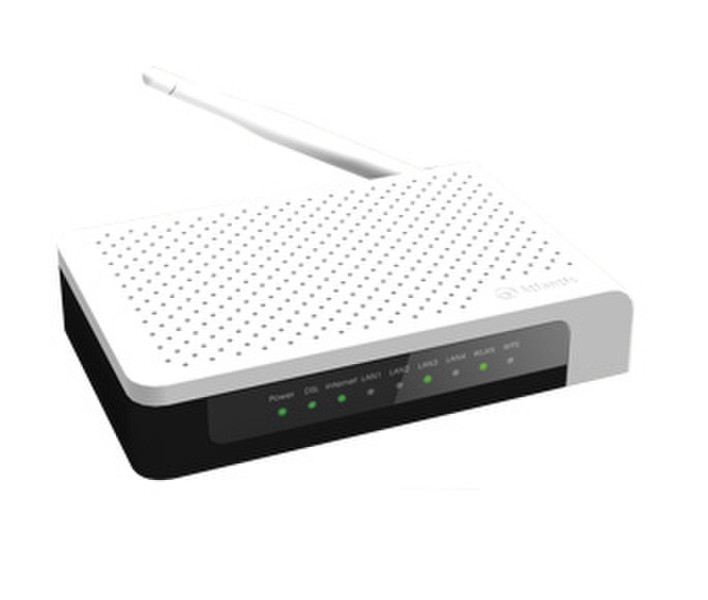

Atlantis Land 141 WN+. Top Wi-Fi standard: IEEE 802.11n, Wi-Fi standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Modulation: BPSK, DSSS, OFDM, QPSK. Ethernet LAN interface type: Fast Ethernet, Cabling technology: 10/100Base-T(X). DSL specification: G.992.1, G.992.2, G.994.1, G.992.3. Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Receiver sensitivity: 802.11b (1Mbps): -90dBm @8% 802.11b (6Mbps): -88dBm @8% 802.11b (11Mbps): -85dBm @8%, Management protocols: IGMP, SNMP. Supported network protocols: IP, IPV6, ICMP, TCP, UDP, CSMA/CA, PPPoA, PPPoE, RFC, Web GUI, Telnet, DNS, SNTP
