Security
| Firewall security |
SOHO |
| System event log |
Y |
| MAC address filtering |
N |
Networking
| Media access protocol |
CSMA/CA, ACK |
| Receiver sensitivity |
802.11b (1Mbps): -90dBm @8% PER\n802.11b (6Mbps): -88dBm @8% PER\n802.11b (11Mbps): -85dBm @8% PER\n802.11g (54Mbps): -68dBm @10% PER\n802.11n (150Mbps): -68dBm @10% PER\n802.11n (300Mbps): -68dBm @10% PER |
| Routing protocols |
IP, RIP-1, RIP-2 |
| Data link protocols |
PPPoA, PPPoE, UDP |
| Management protocols |
IGMP, ICMP |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| xDSL connection |
Y |
| Rack mounting |
N |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
TCP, IPV6 |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Maximum indoor range |
45 m |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
BPSK, CCK, OFDM, QPSK |
| Maximum outdoor range |
120 m |
| Channels quantity |
13 channels |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
5 dBi |
| Transmit power |
17 - 19 dBmW |
| Antennas quantity |
2 |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

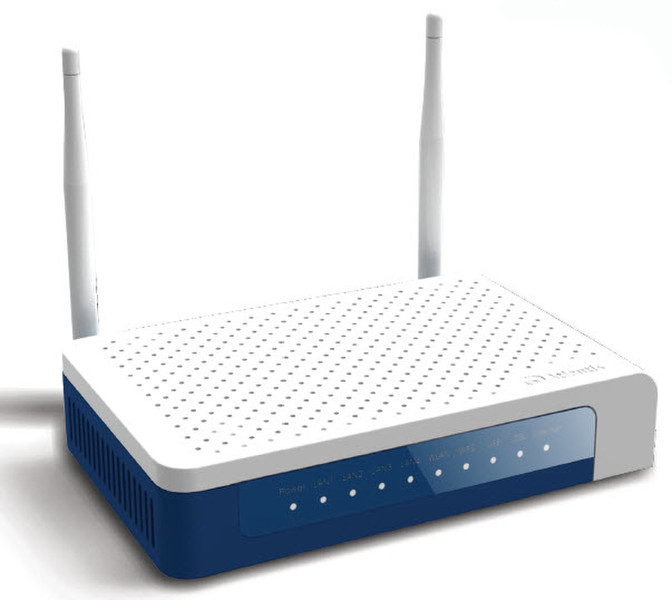

Atlantis Land 144 WN+. Top Wi-Fi standard: IEEE 802.11n, Wi-Fi standards: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, Maximum indoor range: 45 m. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Networking standards: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, Receiver sensitivity: 802.11b (1Mbps): -90dBm @8% PER 802.11b (6Mbps): -88dBm @8% PER 802.11b (11Mbps): -85dBm @8% PER 802, Routing protocols: IP, RIP-1, RIP-2. Supported network protocols: TCP, IPV6. Antenna type: External, Antenna gain level (max): 5 dBi, Transmit power: 17 - 19 dBmW
