Other features
| Upstream data rate |
1 Mbit/s |
| Downstream data rate |
24 Mbit/s |
| USB version |
2.0 |
| USB ports quantity |
1 |
| xDSL connection |
Y |
| Frequency range |
2.4 - 2.472 GHz |
| Frequency band |
2.4 GHz |
| Rack mounting |
N |
| Mobile network connection |
N |
Networking
| Routing protocols |
RIP-2, RIP-1, IP |
| Media access protocol |
CSMA/CA, ACK |
| Switching protocols |
ICMP, TCP, UDP, IGMP |
| Management protocols |
SNMP, MIB |
Security
| VPN support |
IPSec, PPTP |
| MAC address filtering |
N |
| URL filtering |
Y |
| Firewall |
Y |
| NAT functionality |
NAT, PAP, CHAP |
Wireless LAN features
| Maximum outdoor range |
100 m |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Maximum indoor range |
35 m |
| Modulation |
QPSK, OFDM, DSSS, CCK, BPSK |
| WLAN data transfer rate (max) |
150 Mbit/s |
Antenna
| Antenna type |
Internal |
| Antennas quantity |
1 |
| Antenna gain level (max) |
2 dBi |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| DMZ support |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
DSL features
| ADSL2+ |
Y |
| DSL specification |
ITU G.992.1, ITU G.992.2, ITU G.994.1, ITU G.992.3, ITU G.992.5 |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| AC adapter bundled |
Y |
| Filtering |
SPI |

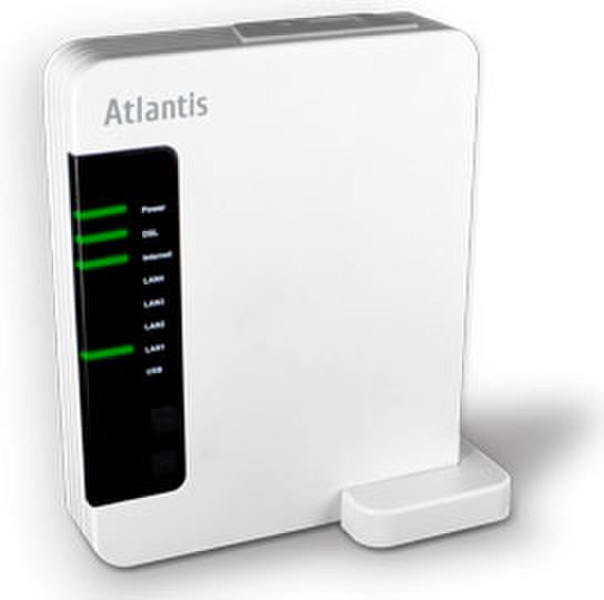

Atlantis Land 150. Top Wi-Fi standard: IEEE 802.11n, WLAN data transfer rate (max): 150 Mbit/s, Wi-Fi standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). DSL specification: ITU G.992.1, ITU G.992.2, ITU G.994.1, ITU G.992.3, ITU G.992.5. Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Switching protocols: ICMP, TCP, UDP, IGMP, Routing protocols: IP, RIP-1, RIP-2. Antenna type: Internal, Antenna gain level (max): 2 dBi
