Weight & dimensions
| Camera depth |
60 mm |
| Camera weight |
350 g |
| Recorder width |
260 mm |
| Recorder depth |
220 mm |
| Recorder height |
43 mm |
| Recorder weight |
1500 g |
| Camera height |
180 mm |
Recorder
| Analog signal format system |
NTSC, PAL |
| Hard drive size |
3.5 " |
| Video compression formats |
H.264 |
| Ethernet interface type |
Fast Ethernet |
| Video capturing speed |
25 fps |
| Card reader integrated |
N |
| Number of hard drives supported |
1 |
| Line inputs (RCA) |
1 |
| Storage media type |
Not available |
| Recorder included |
Y |
| Hard drive interface |
Serial ATA, Serial ATA II |
| Motion sensor |
Y |
| VGA (D-Sub) ports quantity |
1 |
| Channels quantity |
8 channels |
Camera
| Optical sensor size |
1/4 " |
| Surveillance camera form factor |
Bullet |
| Number of cameras |
2 |
| LED type |
IR |
| Night mode |
Y |
| Rotating |
Y |
| Night vision distance |
15 m |
| Heat function |
N |
| Sensor type |
CMOS |
| Camera interface |
RJ-45 |
| Camera resolution |
1280 x 720 pixels |
| Number of illumination LEDs |
48 |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

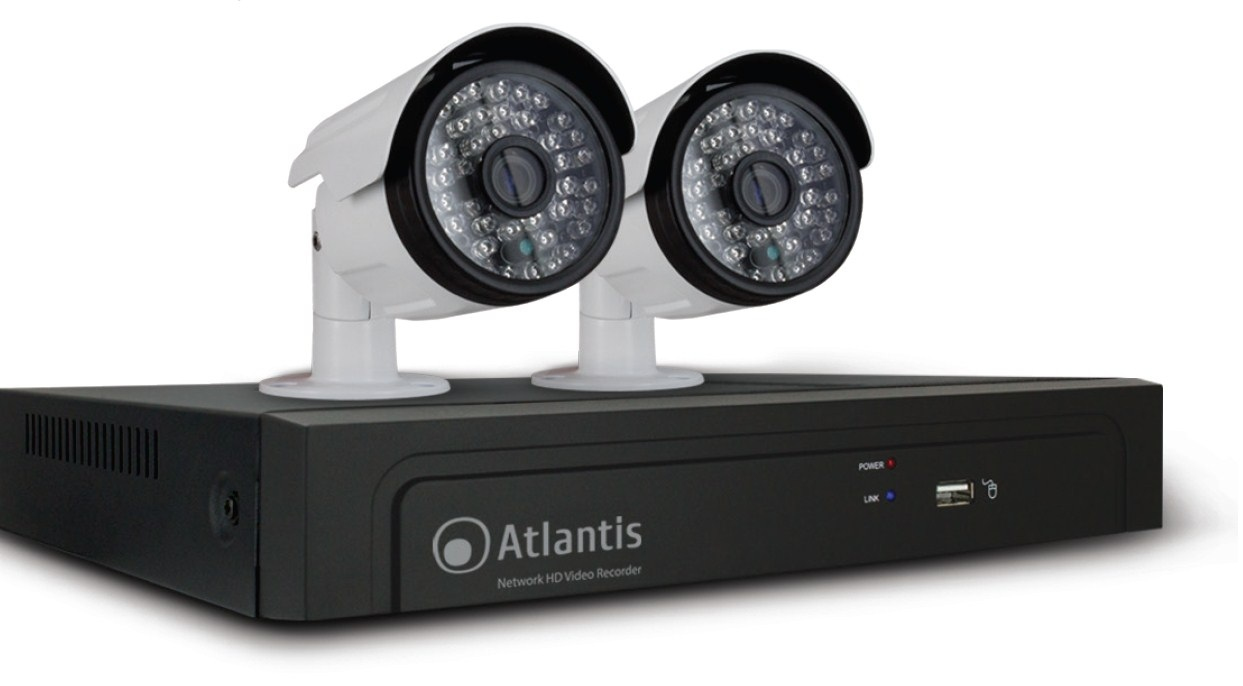

Network Video Recorder (HiSilicon 3520D Chipset, 8x Channel (1080p/H.264), 3x USB 2.0, HDMI-out, VGA-out, 1x 3.5" SATA 1/2 (up to 2TB), Fast Ethernet, 8x Full PoE Ports, 1.5kg, Black) + 2x Bullet IP Cameras (48 IR LED, Outdoor (IP66), 1/4" CMOS Omnivision 1MP, H.264 (1280x720@25fps), PoE (IEEE802.3af), Fast Ethernet, 350g)
NetNVR is a digital recorder able to reproduce both locally, on the connected monitor (through HDMI/VGA) up to 8 channels recorded by the IPCameras, and on internal 3,5” HDD (using codec H.264) on time schedule, either on motion detection or manually. The state-of-the-art CPU can record 8 channels with 1920x1080 denition, 25 fps each, thus granting an unprecedented video quality (in recording or reproducing). Through F/E interface, NetNVR can be connected directly to LAN and it can be remotely managed and controlled in a simple and intuitive way, anytime and anywhere, via PC or notebook with internet (or intranet) connection, by using any web browser (FireFox, Internet Explorer, Chrome, Safari or Opera), or via mobile devices such as iPhone, iPad and Android (free apps included). The function P2P allows the remote-viewing avoiding to set up other devices. You can view or control the NVR (live/playback and PTZ) by simply adding the unique code in the app or scanning the QRcode of the product. NetNVR supports ONVIF 2.2/RTSP standard, widely tting the IPCameras available on the market and it can be connected with a PTZ camera.
These features, together with 36 months free Atlantis DynDNS subscription, make NetNVR the ideal tool for local/remote monitoring/video surveillance.
NetNVR 8-P (with embedded 8 port PoE Switch) uses ethernet cables for the connection to PoE cameras (power and video/audio are integrated onto the same cable, supporting category 5/5e up to 100 Meters).
The bundled IPCameras, equipped with (1/4") CMOS sensor (1MP), are able to work also with a low light intensity of the environment, and can provide clear and tidy videos with real colours in each situation (48 IR LEDs up to 15 mt).
