Weight & dimensions
| Recorder width |
350 mm |
| Recorder depth |
264 mm |
| Recorder height |
60 mm |
| Recorder weight |
1100 g |
Recorder
| Analog signal format system |
NTSC, PAL |
| Hard drive size |
3.5 " |
| Video compression formats |
H.264 |
| Card reader integrated |
N |
| Number of hard drives supported |
2 |
| Storage media type |
HDD |
| Supported network protocols |
TCP/IP, DHCP, DDNS, PPPoE |
| DC-in jack |
Y |
| Channels quantity |
16 |
| Video capturing speed |
480 fps |
| Hard drive interface |
Serial ATA |
| Recorder included |
Y |
| VGA (D-Sub) ports quantity |
1 |
Power
| Recorder power consumption (typical) |
19 W |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

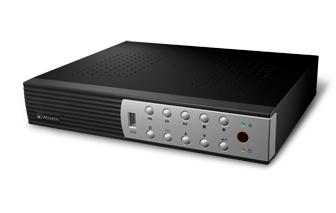

NetDVR T1600 - H.264, PAL/NTSC, 16x RJ45, VGA, 2x RCA, Linux Based (2.6) OS
NetDVR is able to playback locally, on the connected monitor (VGA, RCA or also in HDMI with an optional module), up to 16 channels and is able to record (always, motion detection, manual, time schedule) on the internal 3,5” HDD, using H.264 codec. NetDVR uses ethernet cables for the connection to cameras (power and video/audio are integrated onto the same cable, supporting category 5/5e up to 100 Meters) it allows to migrate in the future the infrastructure toward IP, without further costs of wiring, safeguarding the investment. Finally, it can be remotely managed and controlled at any moment and place, in a simply and intuitive way, via PC or notebook connected to the Internet (or Intranet) by using any web browser or mobile devices (Android, iPhone or iPad). This device can be connected with 1 PTZ Camera (RS485), 16 External Sensors and 1 External Siren. These features, with the included 12 months free Atlantis DynDNS subscription, make NetDVR the ideal tool for local/remote monitoring/video surveillance.
