Protocols
| Media access protocol |
CSMA/CA (ACK) |
Other features
| Link/Act LED |
Y |
| Radio transmit power |
15 ± 1 dBm |
| Outdoor range |
300m |
| Compliance industry standards |
IEEE 802.11b/g/n |
| Channels quantity |
13 channels |
Performance
| Receiver sensitivity |
- 802.11b (11Mbps): -85dBm @8% PER\n- 802.11g (54Mbps): -74dBm @10% PER\n- 802.11n (150Mbps): -65dBm @10% PER\n- 802.11n (300Mbps): -65dBm @10% PER |
Antenna
| Gain |
2 dBi |
| Antenna connector type |
R-SMA |
System requirements
| Optical drive required |
Y |
| Minimum hard disk space |
45 MB |
| Minimum RAM |
512 MB |
| Minimum processor |
Intel Pentium III 600Mhz |
Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
| Interface |
WLAN |
Wireless LAN features
| WLAN data transfer rates supported |
300 Mbit/s |
| Wi-Fi |
Y |
Power
| TX power consumption |
220 mA |
| RX power consumption |
380 mA |
Networking
| Chipset |
Realtek 8192SE |
| Frequency band |
2.412 - 2.472 GHz |
Additionally
| Indoors max range |
100m |
| Transfer rate (Mbps) |
300 Mbit/s |
| Ethernet LAN connection |
N |
| Wireless technologies |
Wireless |

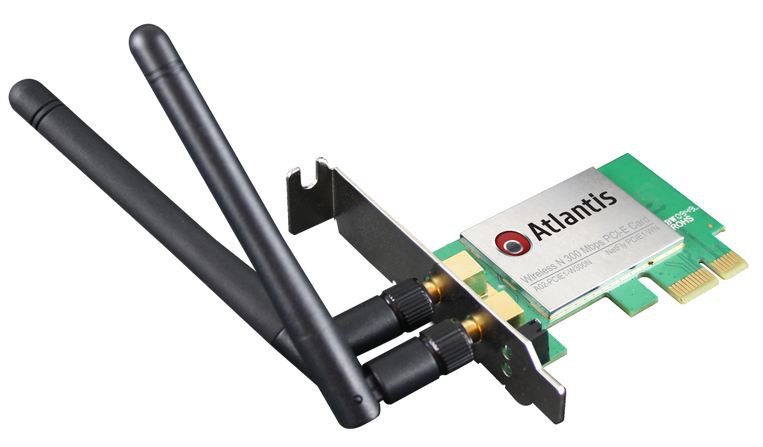

PCI Express card Wireless N 300Mbps, IEEE 802.11b/g/n, WEP/WPA/WPA2, WPS
The NetFly is a high-efficiency wireless LAN Card for wireless networking at home, in office or inpublic places. With the Adapter, you can roam between conference room and office without being disconnected the LAN cables; in addition, sharing files and printers can be easy tasks. The NetFly is available to Microsoft Windows operating systems (Windows? XP/2000/VISTA/7, Linux) and can be integrated into networking with either Ad-hoc mode (computer-to-computer, without an Access Point), Infrastructure mode (computer-to-access point, an Access Point is required). The device offers quick and easy access among wired network and wireless network. The NetFly also supports WPA/WPA2 security, it increases the level of data protection and access control for Wireless LAN. MIMO radio technology (available only on 300Mbps devices) and multiple Antennas provide extended overage and low throughput fluctuations. PCI Express technology offers several advantages over the common PCI interface, such as a higher speeds between the adapter's board and the host computer and in addition has lower power requirements.
