Performance
| Audio codecs |
8Khz, 16-bit ADPCM |
| Backup function |
Y |
| Analog signal format system |
PAL, NTSC |
| Video input channels |
8 |
Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| Audio RCA inputs |
1 |
Storage
| Hard drive interface |
Serial ATA II, Serial ATA |
| Number of hard drives supported |
1 |
| Maximum storage capacity |
2 TB |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Выход HDMI |
Y |
HiSilicon 3520D Chipset, 8x Channel (1080p/H.264), 3x USB 2.0, HDMI-out, VGA-out, 1x 3.5" SATA 1/2 (up to 2TB), Fast Ethernet, 1.5kg, Black

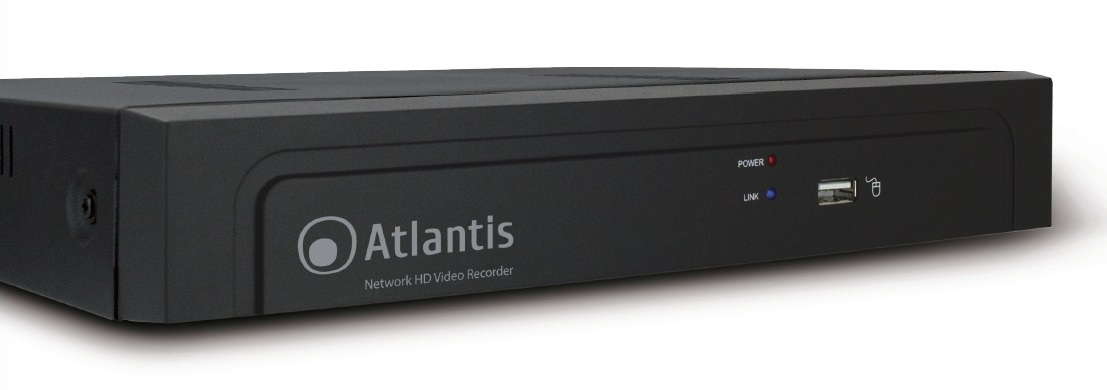

NetNVR is a digital recorder able to reproduce both locally, on the connected monitor (through HDMI/VGA) up to 8 channels recorded by the IPCameras, and on internal 3,5” HDD (using codec H.264) on time schedule, either on motion detection or manually. The state-of-the-art CPU can record 8 channels with 1920x1080 denition, 25 fps each, thus granting an unprecedented video quality (in recording or reproducing). Through F/E interface, NetNVR can be connected directly to LAN and it can be remotely managed and controlled in a simple and intuitive way, anytime and anywhere, via PC or notebook with internet (or intranet) connection, by using any web browser (FireFox, Internet Explorer, Chrome, Safari or Opera), or via mobile devices such as iPhone, iPad and Android (free apps included). The function P2P allows the remote-viewing avoiding to set up other devices. You can view or control the NVR (live/playback and PTZ) by simply adding the unique code in the app or scanning the QRcode of the product.
NetNVR supports ONVIF 2.2/RTSP standard, widely tting the IPCameras available on the market and it can be connected with a PTZ camera. These features, together with 36 months free Atlantis DynDNS subscription, make NetNVR the ideal tool for local/remote monitoring/video surveillance.
