Ports & interfaces
| Audio RCA inputs |
1 |
| Audio RCA outputs |
1 |
| VGA (D-Sub) output ports |
1 |
Performance
| Analog signal format system |
NTSC, PAL |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Audio codecs |
8Khz, 16-bit ADPCM |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Backup function |
Y |
| Video input channels |
9 channels |
Storage
| Hard drive size |
3.5 " |
| Number of hard drives supported |
1 |
| Maximum storage capacity |
2 TB |
| Hard drive interface |
Serial ATA, Serial ATA II |
System requirements
| Browser supported |
IE(Active X), Mozilla, Opera, Safari |
| Mac operating systems supported |
Y |
| Mobile operating systems supported |
Android, iOS |
Additionally
| Выход HDMI |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

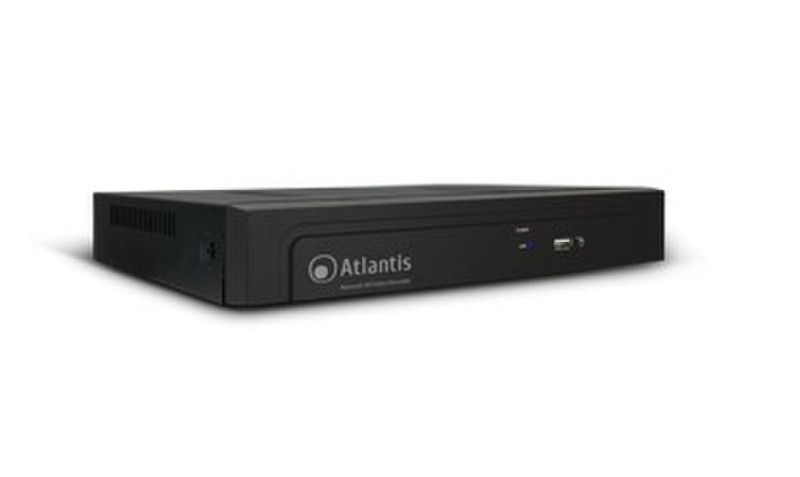

HiSilicon 3520D Chipset, 9x Channel (1080p/H.264), USB 2.0, HDMI-out, VGA-out, 1x 3.5" SATA 1/2 (up to 2TB), Ethernet, 1.5kg, Black
NetNVR is a digital recorder able to reproduce both locally, on the connected monitor (through HDMI/VGA) up to 9 channels recorded by the IPCameras, and on internal 3,5” HDD (using codec H.264) on time schedule, either on motion detection or manually. The state-of-the-art CPU can record 9 channels with 5MP denition, 25 fps each, thus granting an unprecedented video quality (in recording or reproducing).
Through F/E interface, NetNVR can be connected directly to LAN and it can be remotely managed and controlled in a simple and intuitive way, anytime and anywhere, via PC or notebook with internet (or intranet) connection, by using any web browser (FireFox, Internet Explorer, Chrome, Safari or Opera), or via mobile devices such as iPhone, iPad and Android (free apps included). The function P2P allows the remote-viewing avoiding to set up other devices.
You can view or control the NVR (live/playback and PTZ) by simply adding the unique code in the app or scanning the QRcode of the product. NetNVR supports ONVIF 2.2/RTSP standard, widely tting the IPCameras available on the market, it can be connected with a PTZ camera, with 2 external sensors and can control 1 external alarm buzzer (or other devices). These features, together with 36 months free Atlantis DynDNS subscription, make NetNVR the ideal tool for local/remote monitoring/video surveillance.
