System requirements
| Mobile operating systems supported |
iOS, Android |
| Mac operating systems supported |
Y |
| Browser supported |
IE(Active X), Mozilla, Opera, Safari |
Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| Audio RCA outputs |
1 |
| Audio RCA inputs |
1 |
Performance
| Backup function |
Y |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Audio codecs |
8Khz, 16-bit ADPCM |
| Analog signal format system |
PAL, NTSC |
| Video input channels |
9 |
Storage
| Maximum storage capacity |
2 TB |
| Hard drive interface |
Serial ATA, Serial ATA II |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| AC adapter bundled |
Y |
| Выход HDMI |
Y |

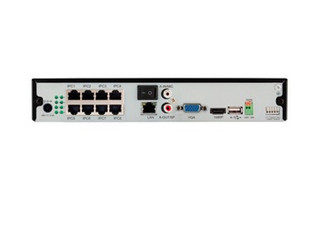

HiSilicon 3520D Chipset, 9x Channel (1080p/H.264), USB 2.0, HDMI-out, VGA-out, 1x 3.5" SATA 1/2 (up to 2TB), Ethernet, 9x Full PoE Ports, 1.5kg, Black

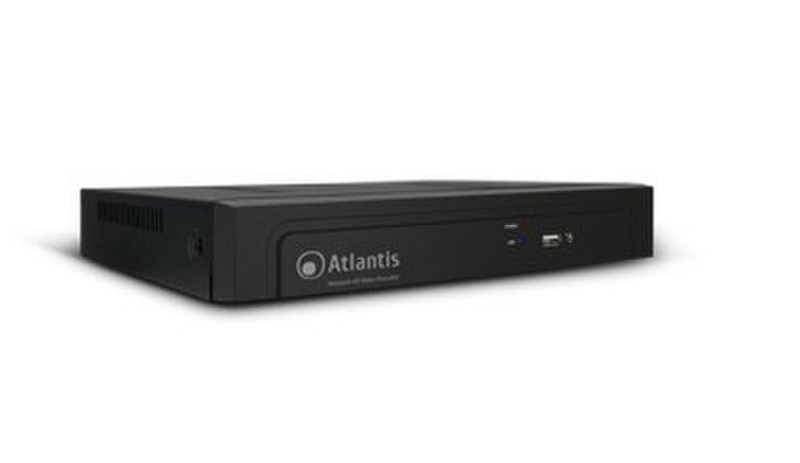

NetNVR is a digital recorder able to reproduce both locally, on the connected monitor (through HDMI/VGA) up to 9 channels recorded by the IPCameras, and on internal 3,5” HDD (using codec H.264) on time schedule, either on motion detection or manually. The state-of-the-art CPU can record 9 channels with 5MP denition, 25 fps each, thus granting an unprecedented video quality (in recording or reproducing).
Through F/E interface, NetNVR can be connected directly to LAN and it can be remotely managed and controlled in a simple and intuitive way, anytime and anywhere, via PC or notebook with internet (or intranet) connection, by using any web browser (FireFox, Internet Explorer, Chrome, Safari or Opera), or via mobile devices such as iPhone, iPad and Android (free apps included). The function P2P allows the remote-viewing avoiding to set up other devices.
You can view or control the NVR (live/playback and PTZ) by simply adding the unique code in the app or scanning the QRcode of the product. NetNVR supports ONVIF 2.2/RTSP standard, widely tting the IPCameras available on the market, it can be connected with a PTZ camera, with 2 external sensors and can control 1 external alarm buzzer (or other devices). These features, together with 36 months free Atlantis DynDNS subscription, make NetNVR the ideal tool for local/remote monitoring/video surveillance.
