Ports & interfaces
| DC-in jack |
Y |
| VGA (D-Sub) output ports |
1 |
| RS-485 ports |
1 |
| Audio RCA inputs |
1 |
Performance
| Video input channels |
16 |
| Backup function |
Y |
| Audio codecs |
8Khz, 16-bit ADPCM |
Storage
| Number of hard drives supported |
2 |
| Maximum storage capacity |
4 TB |
| Hard drive interface |
Serial ATA, Serial ATA II |
Additionally
| Выход HDMI |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
HiSilicon 3535 Chipset, 16x Channel (1080p/H.264), 2x USB 2.0, HDMI-out, VGA-out, 2x 3.5" SATA 1/2 (up to 2x 2TB), Gigabit LAN, 1.7kg, Black

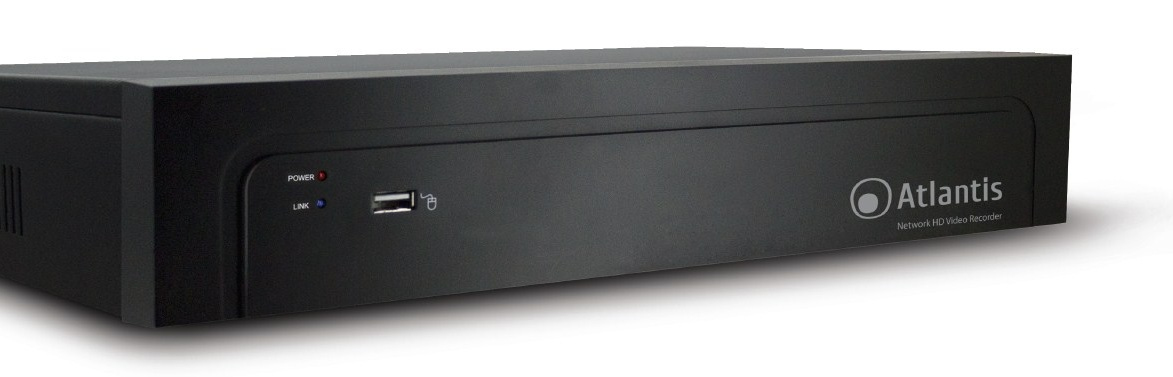

NetNVR is a digital recorder able to reproduce both locally, on the connected monitor (through HDMI/VGA or RCA) up to 16 channels recorded by the IPCameras, and on internal 3,5” HDD (using codec H.264) on time schedule, either on motion detection/sensor or manually. NetNVR 16 can support up to 2 disks expanding its memory capacity (2TB/disk). The state-of-the-art CPU can record 16 channels with 1920x1080 denition, 25 fps each, thus granting an unprecedented video quality (in recording or reproducing). Through Gigabit interface, NetNVR can be connected directly to LAN and it can be remotely managed and controlled in a simple and intuitive way, anytime and anywhere, via PC or notebook with internet (or intranet) connection, by using any web browser (FireFox, Internet Explorer, Chrome, Safari or Opera), or via mobile devices such as iPhone, iPad and Android (free apps included). The function P2P allows the remote-viewing avoiding to set up other devices. You can view or control the NVR (live/playback and PTZ) by simply adding the unique code in the app or scanning the QRcode of the product. NetNVR supports ONVIF 2.2/RTSP standard, widely tting the IPCameras available on the market, it can be connected with a PTZ camera, with 2 external sensors and can control 1 external alarm buzzer (or other devices).
These features, together with 36 months free Atlantis DynDNS subscription, make NetNVR the ideal tool for local/remote monitoring/video surveillance.
